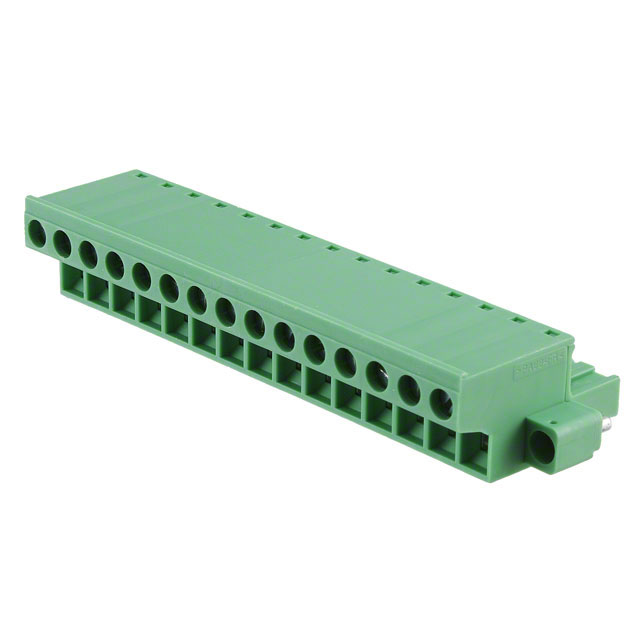

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 15 路 母 绿色 插头 1777921, 螺钉端接
Conn Terminal Block F 15 POS 5.08mm Screw ST Panel Mount 12A
得捷:
TERM BLOCK PLUG 15POS STR 5.08MM
欧时:
Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 15 路 母 绿色 插头 1777921, 螺钉端接
艾睿:
Create a bridge between two sides of a circuit by implementing this 1777921 PCB terminal block from Phoenix Contact. This F connector has 15 contacts that are plated with tin. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a straight body orientation. Its pitch is 5.08 mm. It has a female type gender. 1777921 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. This product is 9.8 mm long, 15 mm tall and 27.2 mm deep. It uses the screw termination method.
Verical:
Plug with screw flange, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08 mm, number of positions: 15,
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 15 - pitch: 5.08 mm - connection method: Front screw connection - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 15 POS 5.08mm Screw ST Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
