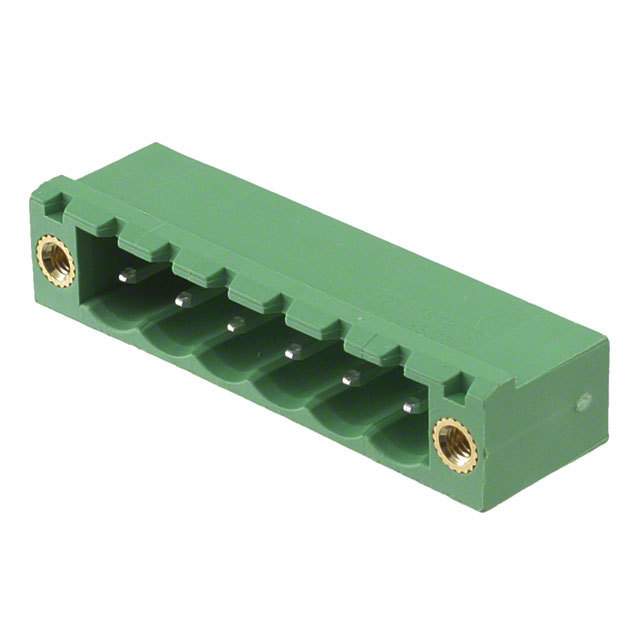

Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 6路 5.08mm节距 1924127, 焊接端接, 16A
6 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.200" 5.08mm 90°, Right Angle Through Hole
得捷:
TERM BLOCK HDR 6POS 90DEG 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 6路 5.08mm节距 1924127, 焊接端接, 16A
立创商城:
5.08mm 排数:1 每排P数:6
艾睿:
Look no further than the shrouded 1924127 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 6 contacts that are plated with tin. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 16 A. 1924127 is housed in green polyamide. It uses the solder termination method. This product is 25.4 mm long, 8.6 mm tall and 12 mm deep.
Verical:
Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Electro Sonic:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
