Phoenix Contact MINI COMBICON MC 3.81mm 单电平印刷电路板端子块针座MINI COMBICON MC 单电平薄型直角印刷电路板通孔安装有罩端子块针座，带紧凑型 3.81mm 节距和公引脚 MC 部件号带有前缀 1827，具有螺纹法兰 MC 部件号带有前缀 18178，具有锁定和释放机制、螺纹法兰，且可与带锁定或释放或螺钉法兰的插头一起使用。 有关标志卡，请参见库存号 648-5508 有关配接锁定和释放插头，请参见库存号 220-4658（典型）### Phoenix Contact MINI-COMBICON 3.81mm 两件式端子块3.81mm 节距薄型互连系统，能节省印刷电路板空间，并能广泛接受 1.5mm2 电线的连接。 螺钉（上升钳位）和弹簧笼选件 螺钉接线端子铜含量高 >85% 仅 8mm 高于板上 额定电流 | 8A ---|--- 电压额定值 | 160V 导线接受范围 | 28-16 awg 绝缘材料 | 聚酰胺 6.6 Krilen 螺纹规格 | M2 易燃性等级 | UL 94 V-0
Contact MINI COMBICON MC 和 MCV 系列 3.81mm 单级印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列单级薄型直角印刷电路板通孔安装有罩端子块管座，带紧凑型 3.81mm 节距和插入式引脚。这些 MINI COMBICON 端子块提供螺纹法兰和锁定及释放机制。
有关标记卡，请参见库存号 648-5508
有关配接锁定和释放插头，请参见库存号 220-4658（典型）
得捷:
TERM BLOCK HDR 12POS VERT 3.81MM
贸泽:
可插拔接线端子 12 Pos 3.81mm pitch Through Hole Header
艾睿:

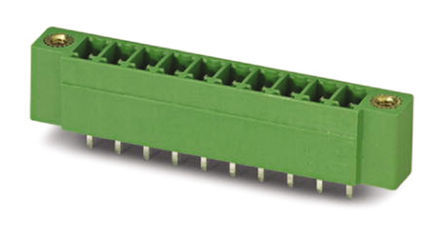

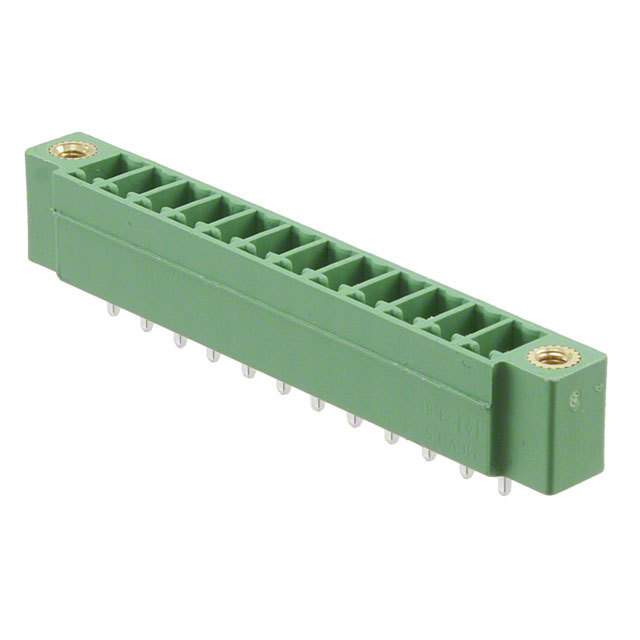

Look no further than the shrouded 1830693 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 12 contacts that are plated with tin. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a header type gender. Its pitch is 3.81 mm. It has a straight body orientation. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 56.11 mm long, 9.2 mm tall and 7.25 mm deep. 1830693 is housed in green polybutylene terephthalate.
Allied Electronics:
Header, Nominal current: 8 A, Rated voltage III/2: 160 V, Number of positions:
Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 3.81mm Solder ST Top Entry Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 12 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
