1623788-6

Res Wirewound 150Ω 5% 5W ±300ppm/℃ Ceramic RDL Thru-Hole

SQM5 150R 5% WIRE

艾睿:

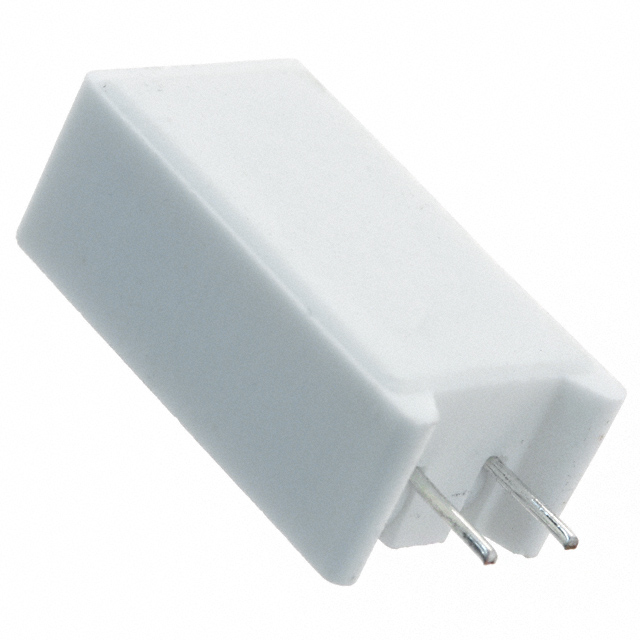

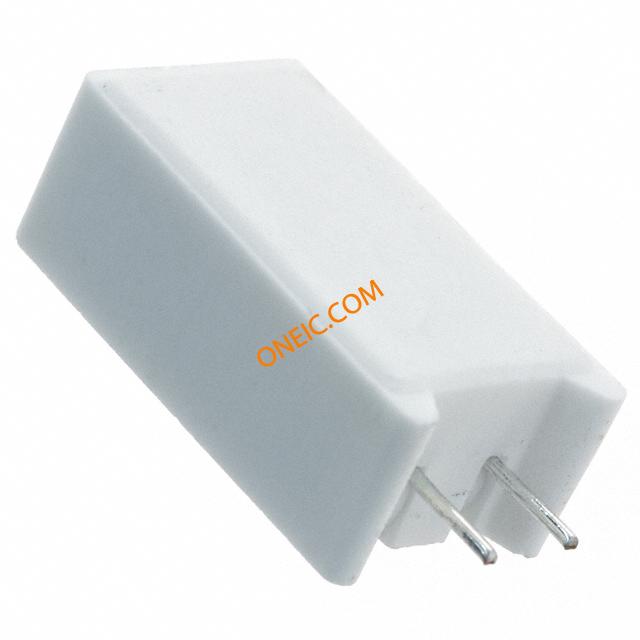

In addition to being very cost-effective, the 1623788-6 fixed single through-hole resistor, developed by TE Connectivity, is very easy to solder onto any printed circuit board. This product has a resistance value of 150 Ohm. This durable part has a power rating of 5 W. Its temperature coefficient is ±300 ppm/°C. This device is made with wirewound technology. This part has an operating temperature of -55 to 250 °C. The 1623788-6 part has a radial termination style. This product&s;s terminal pitch is 5 mm. It has a tolerance of 5%. This product is 13 mm long, 25 mm tall and 9 mm deep.

安富利:
Res Wirewound 150 Ohm 5% 5W ±300ppm/°C Ceramic RDL Thru-Hole

Verical:
Res Wirewound 150 Ohm 5% 5W ±300ppm/C Ceramic RDL Box/Loose

MASTER:
SQM5 150R 5% WIRE

Online Components:
SQM5 150R 5% WIRE

Electro Sonic:
SQM5 150R 5% WIRE
