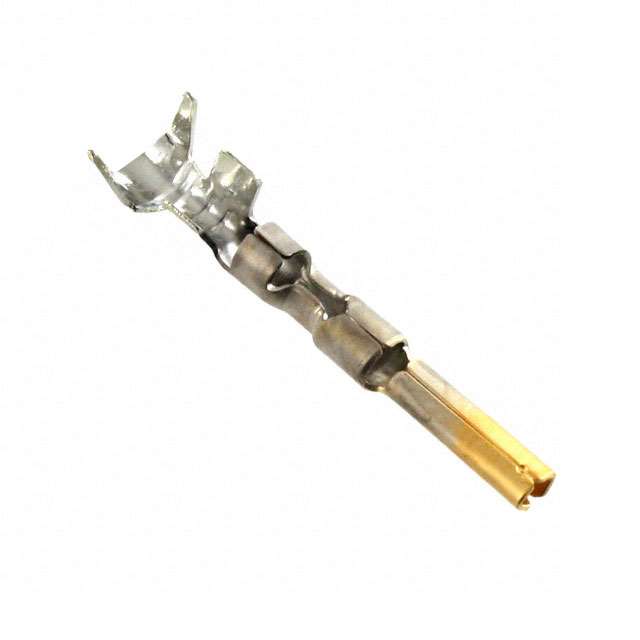

管脚和插座连接器 MUMNL2 SKT 20-16 AWG
MINI UMNL2 SCKT 20-16AWG 30AU
Product Highlights
Contact
Mini-Universal MATE-N-LOK 2
Socket
Strip
Wire Range = 0.50-1.40² [20-16] mm [AWG]
得捷:
CONN SOCKET 16-20AWG CRIMP GOLD
立创商城:
1-794223-0
贸泽:
管脚和插座连接器 MUMNL2 SKT 20-16 AWG
艾睿:
Install this 1-794223-0 connector contact from TE Connectivity as a preventative measure against premature failure of your connections. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 9.5 A. This has a Connector Headers and PCB Receptacles connector. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the crimp termination method. Its wire is 16-20 AWG. This connector contact has an operating temperature range of -55 °C to 105 °C. This product is 20.2 mm long, 3.94 mm tall and 4.45 mm deep.
安富利:
Contact SKT Crimp ST Cable Mount Strip
Chip1Stop:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT Crimp ST Cable Mount 16-20AWG T/R
MASTER:
SOCKET, MINI UNIVERSAL MATE-N-LOK 2
Powell:
.163" Centerline, 600 V, 9.5 A max.
Online Components:
MINI UMNL2 SCKT 20-16AWG 30AU
Electro Sonic:
MINI UMNL2 SCKT 20-16AWG 30AU
极性 Female
线规 16AWG ~ 20AWG
触点电镀 Gold
额定电流 9.50 A
额定电流Max 9.5 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
封装 -
长度 20.2 mm
宽度 4.45 mm
高度 3.94 mm
封装 -
触点材质 Brass
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-794223-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
02081003 莫仕 | 功能相似 | 1-794223-0和02081003的区别 |
