1-794608-1概述

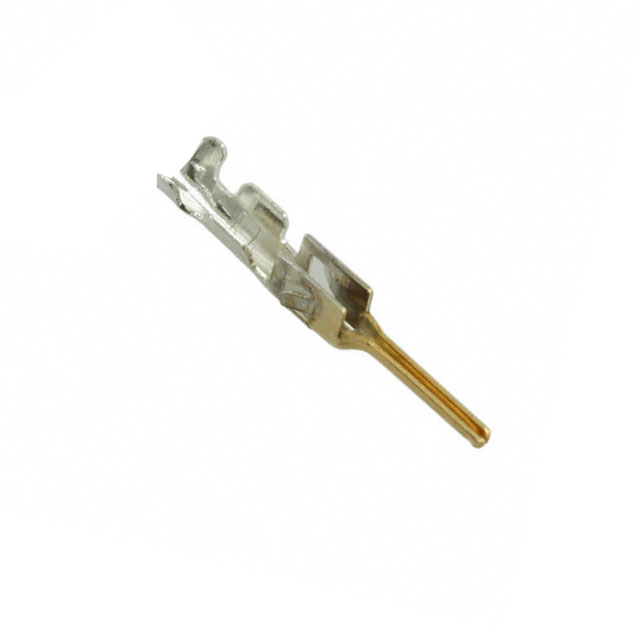

触芯, Micro MATE-N-LOK Series, 公, 压接, 20 AWG, 镀金触芯, AMP Micro MATE-N-LOK系列插头外壳

PIN CONT 20-24 15 GOLD STRIP

Product Highlights

Contact

Contact Type = Plug

Wire Range = 0.20-0.60² [24-20] mm [AWG]

Gold 15 Contact Mating Area Plating Material

Packaging Method = Tape & Reel


得捷:
CONN PIN 20-24AWG CRIMP GOLD


立创商城:
1-794608-1


贸泽:
Pin & Socket Connectors PIN 20-24 AWG Reel of 10000


e络盟:
触芯, Micro MATE-N-LOK Series, 公, 压接, 20 AWG, 镀金触芯, AMP Micro MATE-N-LOK系列插头外壳


艾睿:
Have a wire which needs to be connected to something? This 1-794608-1 connector contact from TE Connectivity will get you there. It has a straight body orientation. This device has a maximum current rating of 5 A. This has a Connector Power connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its wire is 20-24 AWG. It uses the crimp termination method. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 13.73 mm long and 2.48 mm.


安富利:
Contact PIN Crimp ST Cable Mount T/R


Chip1Stop:
Contact PIN Crimp ST Cable Mount T/R


Verical:
Contact PIN Crimp ST Cable Mount 20-24AWG T/R


MASTER:
PLUG CONTACT, CRIMP SNAP, 20-24 AWG, MICRO MATE-N-LOKTM


Powell:
3mm Centerline, 250V, 5 A max.


Online Components:
PIN CONT 20-24 15 GOLD STRIP


Electro Sonic:
PIN CONT 20-24 15 GOLD STRIP


1-794608-1中文资料参数规格
技术参数

极性 Male

线规 20AWG ~ 24AWG

触点电镀 Gold

额定电流 5 A

额定电流Max 5 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 250 VAC

额定电压 250 V

封装参数

封装 -

外形尺寸

长度 13.73 mm

宽度 2.48 mm

封装 -

物理参数

触点材质 Brass

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 工业, 发光二极管照明, 安全, Power, 消费电子产品, 仪器仪表

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536699082

数据手册

在线购买1-794608-1
型号: 1-794608-1
描述:触芯, Micro MATE-N-LOK Series, 公, 压接, 20 AWG, 镀金触芯, AMP Micro MATE-N-LOK系列插头外壳
替代型号1-794608-1
型号/品牌 代替类型 替代型号对比

1-794608-1

TE Connectivity 泰科

当前型号

当前型号

1-794612-1

泰科

完全替代

1-794608-1和1-794612-1的区别

1-794608-0

泰科

类似代替

1-794608-1和1-794608-0的区别

43031-0002

莫仕

类似代替

1-794608-1和43031-0002的区别
