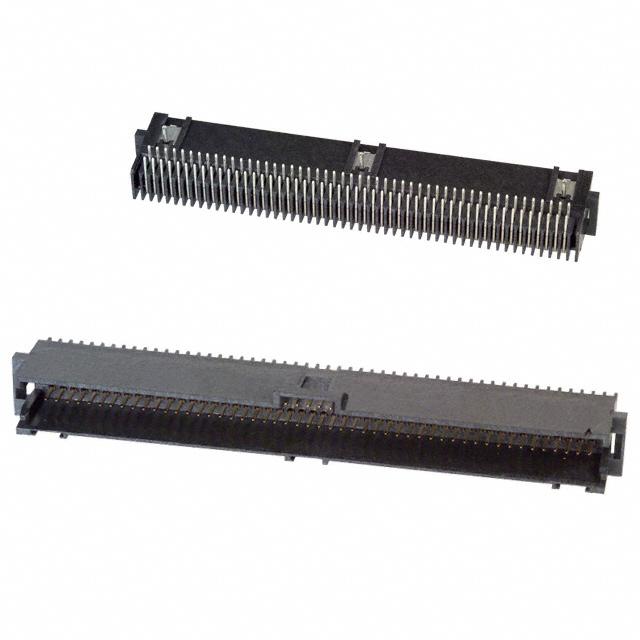

104069-7图片1

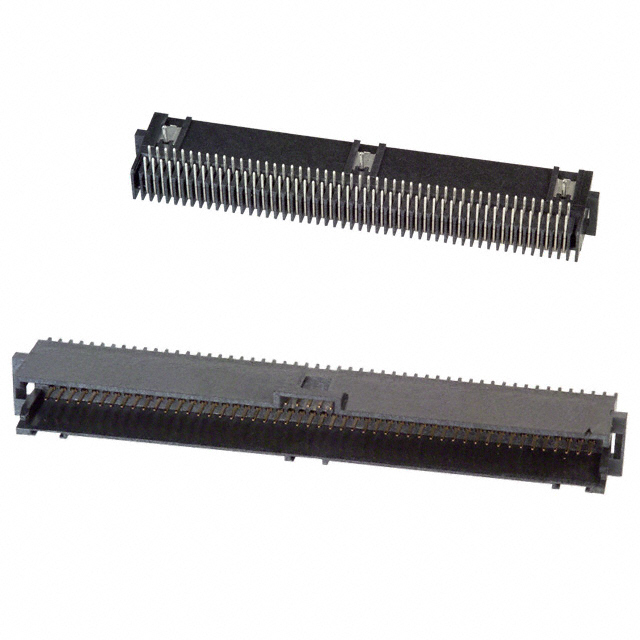

104069-7图片2
104069-7图片3
104069-7图片4
104069-7图片5
104069-7图片6
104069-7图片7
104069-7概述

AMPMODU 60 位置 通孔 双 直角 0.050 x 0.100 带护套 插头

针座 通孔,直角 60 位置 0.050"(1.27mm)


得捷:
CONN HEADER R/A 60POS 1.27MM


艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded 104069-7 connector from TE Connectivity. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 30 VAC. It has a right angle body orientation. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 44.45 mm long, 8.89 mm tall and 13.72 mm deep. 104069-7 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.


安富利:
Conn Shrouded Header HDR 60 POS 1.27mm Solder RA Thru-Hole Tube


Chip1Stop:
Conn Shrouded Header HDR 60 POS 1.27mm Solder RA Thru-Hole Tube


Verical:
Conn Shrouded Header HDR 60 POS 1.27mm Solder RA Thru-Hole Box/Tube


MASTER:
HEADER ASSEMBLY,RIGHT ANGLE,DOUBLE ROW, W/SIDE & END LATCHES, AMPMODU System 50


Powell:
.050 X .100 AMPMODU System 50


Online Components:
60 SYSTEM 50 HDR DRRA SHRD


Electro Sonic:
60 SYSTEM 50 HDR DRRA SHRD


104069-7中文资料参数规格
技术参数

触点数 60

触点电镀 Tin Lead, Gold

排数 2

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 60

安装角度 90.0 °

带凸肩 Yes

额定电流Max 1A/触头

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 30 VAC

额定电压 30 VAC

封装参数

安装方式 Through Hole

引脚间距 1.27 mm

外形尺寸

长度 44.45 mm

宽度 13.72 mm

高度 8.89 mm

引脚间距 1.27 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -65℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 汽车,通用,医疗,电信

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买104069-7
型号: 104069-7
描述:AMPMODU 60 位置 通孔 双 直角 0.050 x 0.100 带护套 插头
替代型号104069-7
型号/品牌 代替类型 替代型号对比

104069-7

TE Connectivity 泰科

当前型号

当前型号

5-104069-7

泰科

功能相似

104069-7和5-104069-7的区别
