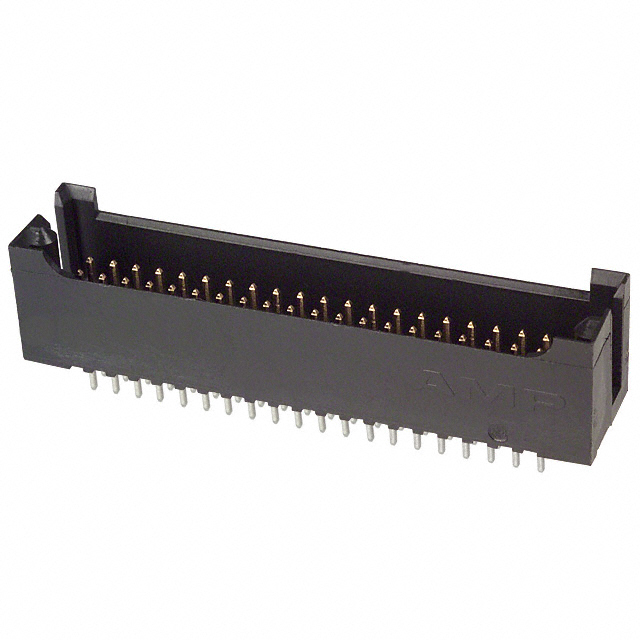

1-102692-3

板对板与夹层连接器 40 MODII 2P HDR SHRD

40 MODII 2PC HDR DR SHRD

Product Highlights

Header

Number of Positions = 40

Number of Rows = Dual

Vertical Mount Angle

2.54 mm Centerline, Matrix

得捷:
CONN HEADER VERT 40POS 2.54MM

贸泽:
板对板与夹层连接器 40 MODII 2P HDR SHRD

艾睿:
Easily mount this shrouded 1-102692-3 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 60.45 mm long, 13.97 mm tall and 13.08 mm deep. This connector has an operating temperature of -65 to 105 °C. 1-102692-3 is housed in black thermoplastic.

Verical:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Automotive Tube

MASTER:
HEADER ASSEMBLY, MOD II, .100C.100CL, .025 SQ POSTS

Powell:
.100 inch AMPMODU 2 Piece

Online Components:
40 MODII 2PC HDR DR SHRD

Electro Sonic:
40 MODII 2PC HDR DR SHRD
