TE Connectivity AMPMODU Short Point 压接扣入式插座触点一系列的 TE Connectivity AMPModU 短点触点,设计用于与短至 4.29mm 的 0.64mm² 支柱配接,可扣合到单排 AMPMODU MTE 外壳中以提供完整的电线压接系统,或只是用作备用触点。 这些短点压接咬接式插座触点由铜合金制成,可选镀金或镀锡,支持最大电线绝缘直径 1.52mm。 关于 Short Point 插座外壳,请参见库存号 797-3160(典型)。### 2.54mm TE Connectivity AMPMODU Short Point 系列

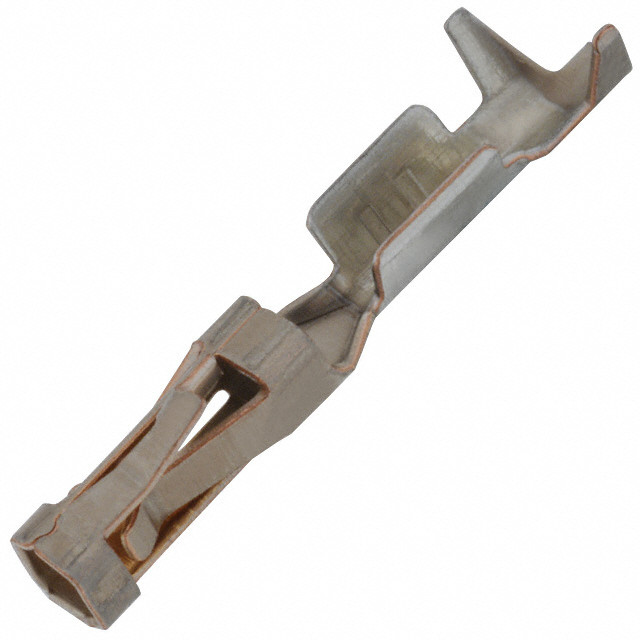

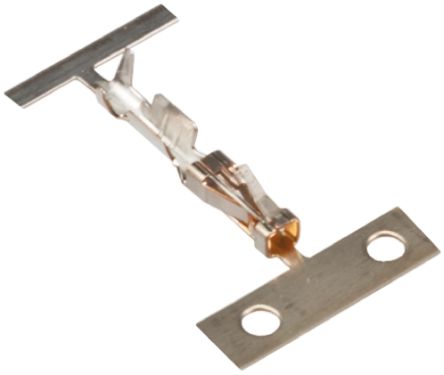

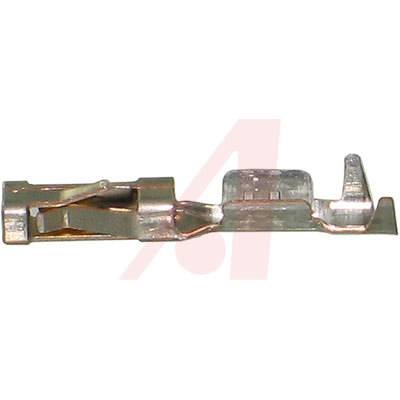

AMPMODU Short Point 压接扣入式插座触点
一系列的 TE Connectivity AMPModU 短点触点,设计用于与短至 4.29mm 的 0.64mm² 支柱配接,可扣合到单排 AMPMODU MTE 外壳中以提供完整的电线压接系统,或只是用作备用触点。 这些短点压接咬接式插座触点由铜合金制成,可选镀金或镀锡,支持最大电线绝缘直径 1.52mm。
关于 Short Point 插座外壳,请参见库存号 797-3160(典型)。
### 2.54mm TE Connectivity AMPMODU Short Point 系列
得捷:
CONN SOCKET 22-26AWG CRIMP GOLD
欧时:
### TE Connectivity AMPMODU Short Point 压接扣入式插座触点一系列的 TE Connectivity AMPModU 短点触点,设计用于与短至 4.29mm 的 0.64mm² 支柱配接,可扣合到单排 AMPMODU MTE 外壳中以提供完整的电线压接系统,或只是用作备用触点。 这些短点压接咬接式插座触点由铜合金制成,可选镀金或镀锡,支持最大电线绝缘直径 1.52mm。 关于 Short Point 插座外壳,请参见库存号 797-3160(典型)。### 2.54mm TE Connectivity AMPMODU Short Point 系列
立创商城:
端子
e络盟:
触芯, AMPMODU Short Point系列, 母, 压接, 22 AWG, 镀金触芯, 0.1 AMPMODU接头, 外壳
艾睿:
Easily improve a secured connection with this specially engineered 1-104480-5 connector contact from TE Connectivity. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. This product is 11.68 mm long and 2.66 mm. This connector contact has an operating temperature range of -65 °C to 105 °C. Its wire is 22-26 AWG.
Allied Electronics:
Contact; Socket; Short Point; Copper Alloy C7025; 26 to 22 AWG; 300 VAC; 750 V
Jameco:
Connector Contact Receptacle 1 Position Crimp Straight Cable Mount Loose Piece
安富利:
Contact SKT Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact SKT Crimp ST Cable Mount 22-26AWG Loose
Verical:
Contact SKT Crimp ST Cable Mount 22-26AWG Loose
Newark:
# AMP - TE CONNECTIVITY 1-104480-5 Contact, AMPMODU Short Point Series, Socket, 26 AWG, 22 AWG, Crimp, Copper Alloy
MASTER:
Contact - AMPMODU Short Point Series - Socket - Crimp - 22 AWG - Gold Plated Contacts.
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
SHORT POINT RCP CONT LP
Electro Sonic:
Contact - AMPMODU Short Point Series - Socket - Crimp - 22 AWG - Gold Plated Contacts.
触点数 20
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Gold
额定电压DC 300 V
额定电压AC 300 V
额定电流 3 A
绝缘电阻 5000 MΩ
排数 2
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
接触电阻Max 12 mΩ
封装 -
长度 11.68 mm
宽度 2.67 mm
封装 -
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 车用, 电信, 测试与测量, 医用, 工业自动化, 便携式器材, 游戏, 消费电子产品, 仪器仪表
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-104480-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-104480-2 泰科 | 类似代替 | 1-104480-5和1-104480-2的区别 |
70058-0224 莫仕 | 类似代替 | 1-104480-5和70058-0224的区别 |
104480-8 泰科 | 功能相似 | 1-104480-5和104480-8的区别 |
