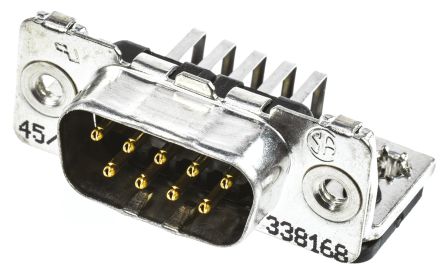

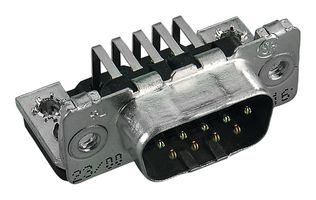

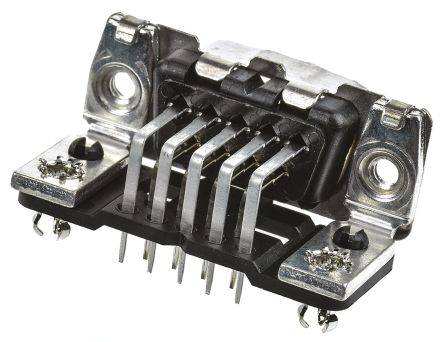

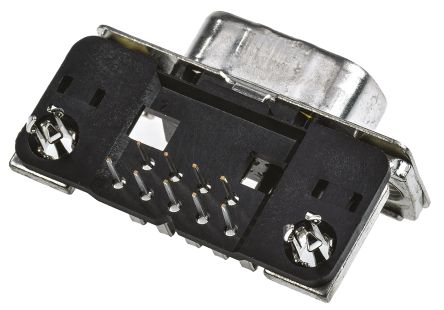

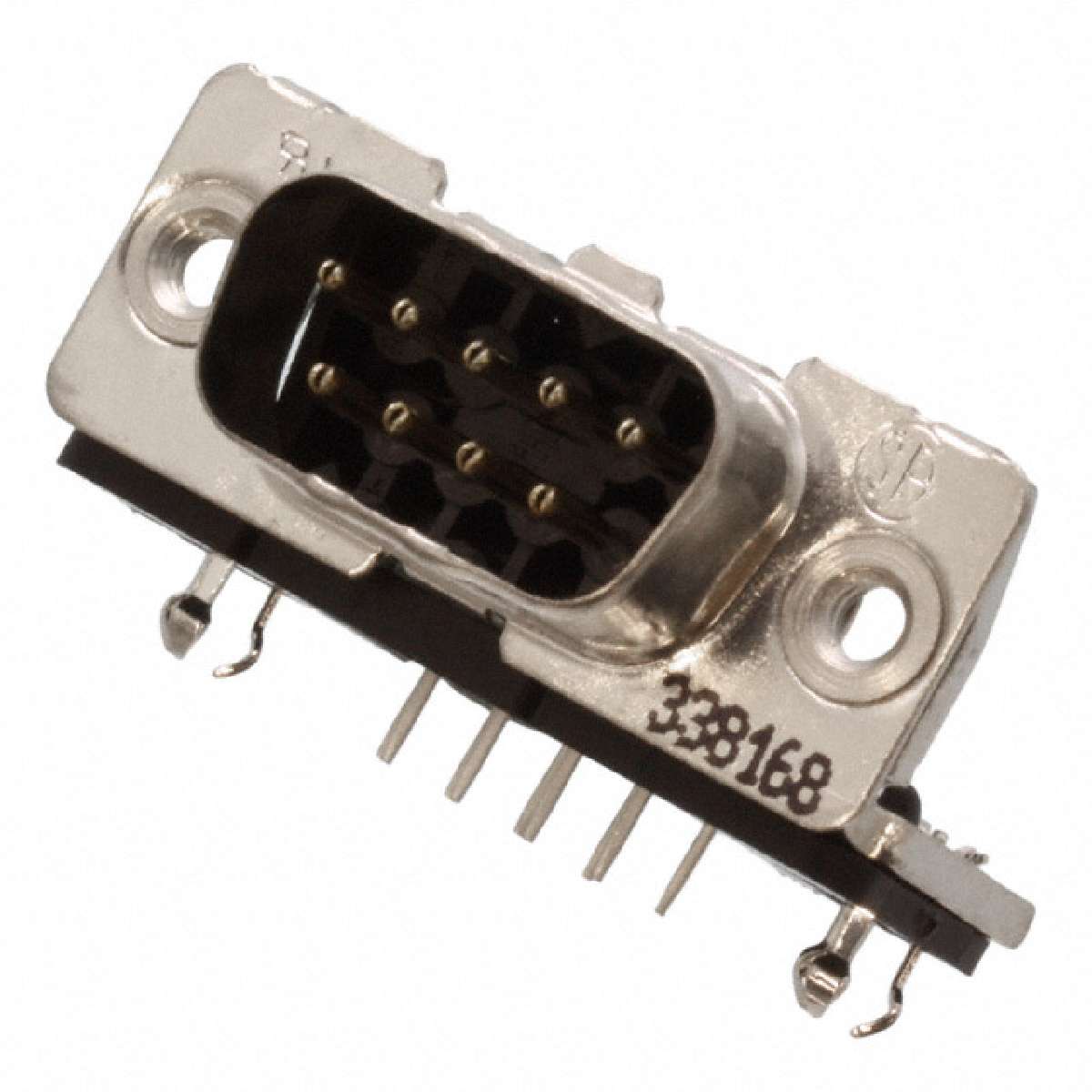

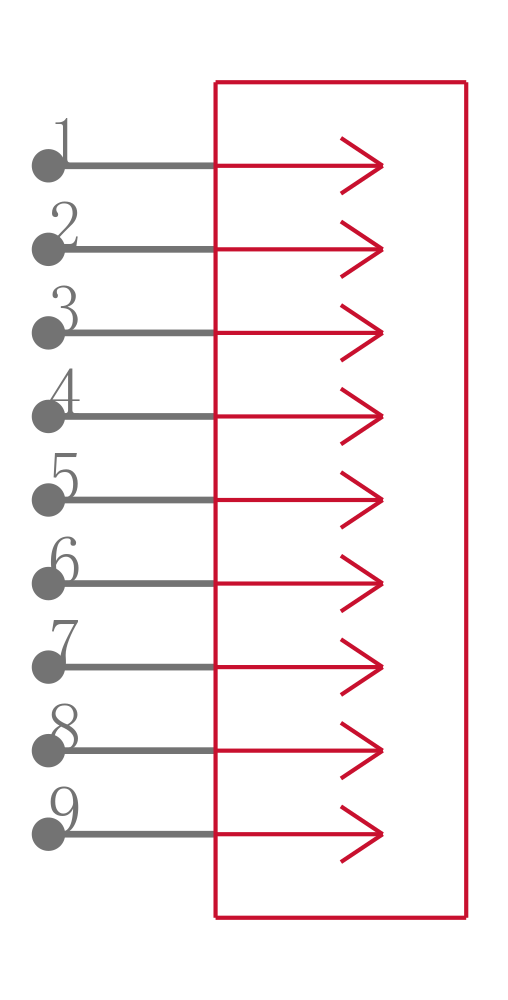

1-338168-2

D-SUB 欧洲标准尺寸 HD-20 90° 内螺纹带集成 PCB 安装和接地 金属法兰中的螺母 UNC 4-40 焊接连接，具有 0.7 mm 孔径 Ø 金属盖 Contact material: | Phosphor Bronze ---|--- Contact surface: | 0.76 μm gold Insulation: | Polyester, GV Inflammability: | UL 94V-0 Current carrying capacity: | 6 A max. ### 认可UL, CSA### 标准DIN 41652### TE Connectivity AMPLIMITE D - 超微型连接器Amplimite 系列的连接器和附件。适合于军事应用、工业应用或者商业应用和计算机接口连接等等

D-SUB 欧洲标准尺寸 HD-20 90° 内螺纹

带集成 PCB 安装和接地

金属法兰中的螺母 UNC 4-40

焊接连接，具有 0.7 mm 孔径 Ø

金属盖

Contact material: | Phosphor Bronze

---|---

Contact surface: | 0.76 μm gold

Insulation: | Polyester, GV

Inflammability: | UL 94V-0

Current carrying capacity: | 6 A max.

### 标准

DIN 41652

### 认可

UL, CSA

欧时:
TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 欧式印刷电路板 D-Sub 连接器

得捷:
CONN D-SUB PLUG 9POS R/A SLDR

立创商城:
1-338168-2

e络盟:
D-Sub 连接器, DB9, 标准, 插头, AMPLIMITE HD-20系列, 9 触点, DE, 焊接

艾睿:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Frame

Allied Electronics:
9 W R/A PLUG + INSERTS

Chip1Stop:
Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

TME:
Socket; D-Sub; PIN:9; male; PCB snap-in,10,4mm standard; THT

Verical:
Conn D-Subminiature PIN 9 POS 1.37mm Solder RA Thru-Hole 9 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  1-338168-2  Standard D Sub Connector, Right Angle, 9 Contacts, Plug, DE, AMPLIMITE HD-20 Series, Steel Body

MASTER:
HD-20 SIZE 1 RIGHT ANGLE PLUG HEADER; MARK II+

Powell:
Standard Board Mount Connectors

Online Components:
9POL HDP20 PLUG

Electro Sonic:
9POL HDP20 PLUG
