1-5747150-4

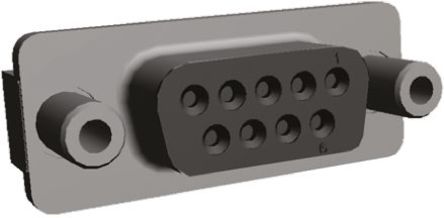

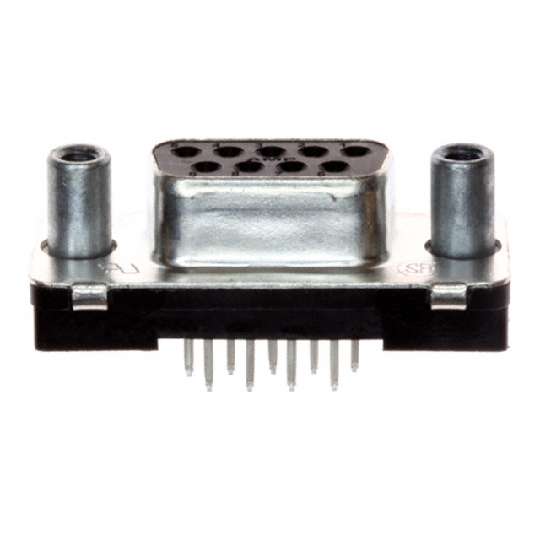

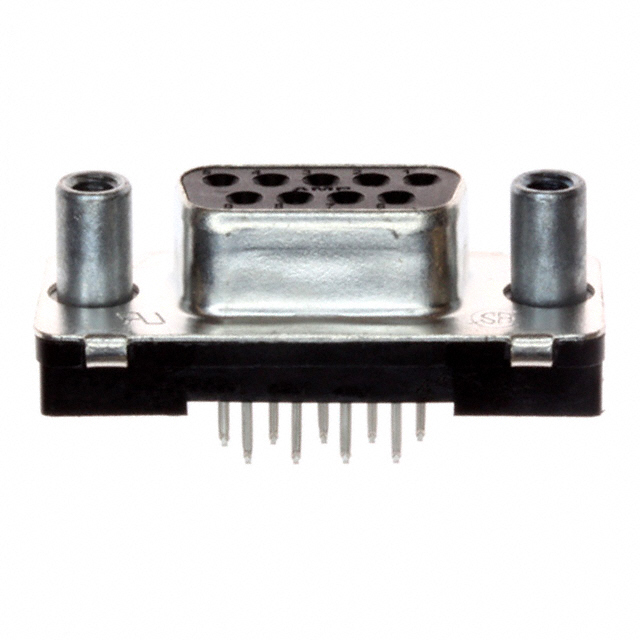

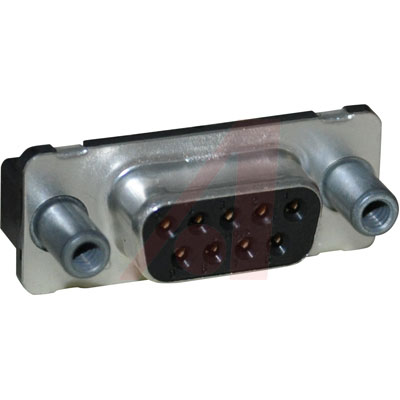

HD20 系列 9 位置 直 插座 板安装D-Sub 连接器

AMPLIMITE D-Sub ，HD-20 系列，前部金属壳，印刷电路板安装，直向

AMPLIMITE HD-20 系列直向粘贴型印刷电路板安装 D-Sub 连接器，带镀锌钢前端外壳、94V-0 黑色热塑外壳，预装了 20 号 DF 粘贴型黄铜引脚触点或磷青铜插座触点，带 0.00076 镀金和 3.18mm 或 4.32mm 柱长度。 这些 AMPLIMITE HD-20 印刷电路板安装直向 D-sub 连接器提供各种印刷电路板固定类型，包括黄铜螺纹插件和镀锌螺钉锁。

得捷:
CONN D-SUB RCPT 9POS VERT SLDR

欧时:
Receptacle pcb straight 9 way Amplimite

立创商城:
1-5747150-4

e络盟:
D-Sub 连接器, DB9, 标准, 插座, AMPLIMITE HD-20 Series, 9 触点, DE, 焊接

艾睿:
The 1-5747150-4 DVI connector from TE Connectivity allows effective communication between your serial connections. This socket type connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.74 mm. It has a maximum voltage rating of 250 VDC|250VAC. This 2-row connector has a single port. 1-5747150-4 is housed in polyester. This product is 30.89 mm long, 12.16 mm tall and 12.55 mm deep. This DVI connector has an operating temperature of -55 to 105 °C. Its 9 terminals use the solder termination method.

Allied Electronics:
Connectors; D-Sub; Standard; RECP FRNT MTL SHL 9P female screwlocks

安富利:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube

Verical:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  1-5747150-4  Standard D Sub Connector, 9 Contacts, Receptacle, DE, AMPLIMITE HD-20 Series, Metal Body, Solder

MASTER:
9 Position D-Sub Receptacle, Female Sockets Connector

Powell:
Standard Board Mount Connectors

Online Components:
09 RCPT SP/FMS SCRLK

ICbanQ:
D-Subminiature Connectors RECP FRNT MTL SHL 9P female screwlocks

Electro Sonic:
9 Position D-Sub Receptacle, Female Sockets Connector
