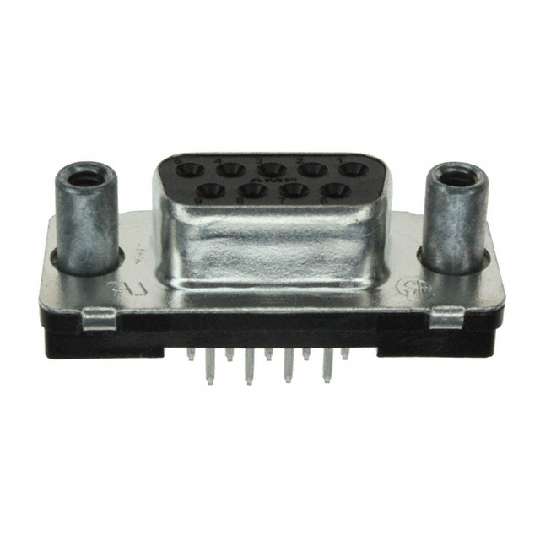

AMP FROM TE CONNECTIVITY 1-5747150-3 连接器, 标准, D-SUB, 9路, 母
9 位 D-Sub 插座,母型插口
欧时:
09 RCPT SP/FMS SCRLK
得捷:
CONN D-SUB RCPT 9POS VERT SLDR
贸泽:
D-Sub标准连接器 RECP FRNT MTL SHL 9P female screwlocks
e络盟:
连接器, 标准, D-SUB, 9路, 母
艾睿:
Make the most secure connections between serial ports using the 1-5747150-3 DVI connector from TE Connectivity. This socket type connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 2.74 mm. 1-5747150-3 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 105 °C. Its 9 terminals use the solder termination method. This product is 30.89 mm long, 12.16 mm tall and 12.55 mm deep.
Allied Electronics:
Conn; D-Sub; PCB Socket; 9Pos; STR; HD-20Series; 20AWG; FrontMetalShell
安富利:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube
Verical:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube
Newark:
# AMP - TE CONNECTIVITY 1-5747150-3 Standard D Sub Connector, 9 Contacts, Receptacle, DE, AMPLIMITE HD-20 Series, Metal Body, Solder
MASTER:
9 Position D-Sub Receptacle, Female Sockets Connector
Powell:
Standard Board Mount Connectors
Online Components:
09 RCPT SP/FMS SCRLK
ICbanQ:
D-Subminiature Connectors RECP FRNT MTL SHL 9P female screwlocks
GOPHER:
D-sub Receptacle 9 POSITION PCB MOUNT VERTICAL MOUNT
Electro Sonic:
9 Position D-Sub Receptacle, Female Sockets Connector
触点数 9
极性 Female
触点电镀 Gold Flash, Tin, Tin over Nickel
额定电流 6 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 9
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 125 V
工作电压Max 250VDC, 250VAC
安装方式 Through Hole
封装 Metal
引脚间距 2.74 mm
长度 30.89 mm
宽度 12.55 mm
高度 12.16 mm
封装 Metal
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-5747150-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
L177TSEG09SOL2RM8 安费诺 | 功能相似 | 1-5747150-3和L177TSEG09SOL2RM8的区别 |
L77TSEH09SOL2RM8 安费诺 | 功能相似 | 1-5747150-3和L77TSEH09SOL2RM8的区别 |
L177TSEH09SOL2RM8 安费诺 | 功能相似 | 1-5747150-3和L177TSEH09SOL2RM8的区别 |
