1-338314-2

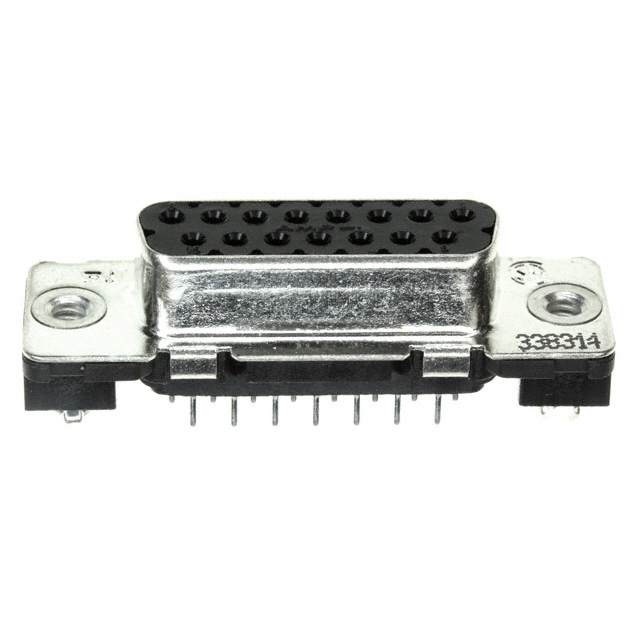

AMP FROM TE CONNECTIVITY  1-338314-2  连接器, D sub, 堆叠式, Amplimite HDP-20系列, DA, 插座, 15 触点, 金属主体, 焊接

AMPLIMITE HDP-20系列高密度, 带有压接式触芯. 该连接器设计用于后部插入和拔出, 20尺寸, 精密触芯. 该连接器具有钢制外壳与黑色聚合物插入件, 带有塑料接触固定齿. 可选择多种尺寸以满足生产需求, 适应各种安装和硬件要求. 该连接器采用梯形连接面配置, 具有多个极化和连接对齐功能, 可确保系统设计灵活性. 插头连接器具有一体式罩, 可保护插入的插针触芯. 为了易于识别, 腔行采用数字编码. 该连接器可接受线缆尺寸为28至18AWG触芯.

得捷:
CONN D-SUB RCPT 15POS VERT SLDR

e络盟:
D-Sub 连接器, DB15, 标准, 插座, AMPLIMITE HDP-20系列, 15 触点, DA, 焊接

艾睿:
Communicate with your serial connections using the 1-338314-2 DVI connector from TE Connectivity. It has a straight body orientation. Its pitch is 2.74 mm. This socket type connector&s;s 15 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. This device has a maximum current rating of 6 A/contact. 1-338314-2 is housed in polyester. The item will be shipped in tray orientation. This DVI connector has an operating temperature of -55 to 105 °C. This product is 39.2 mm long, 12.1 mm tall and 12.4 mm deep. Its 15 terminals use the solder termination method.

安富利:
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port

Verical:
Conn D-Subminiature SKT 15 POS 1.37mm Solder ST Thru-Hole 15 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  1-338314-2  Standard D Sub Connector, Amplimite HDP-20 Series, DA, Receptacle, 15, Metal Body, Solder

MASTER:
HDP-20 SIZE 2 VERTICAL++ RECEPTACLE HEADER; WITH SOLDER CONTACTS

Powell:
Standard Board Mount Connectors

Online Components:
15POS.HD20 REC.ASSY

Electro Sonic:
15POS.HD20 REC.ASSY
