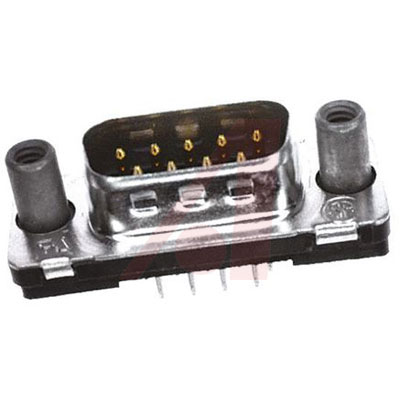

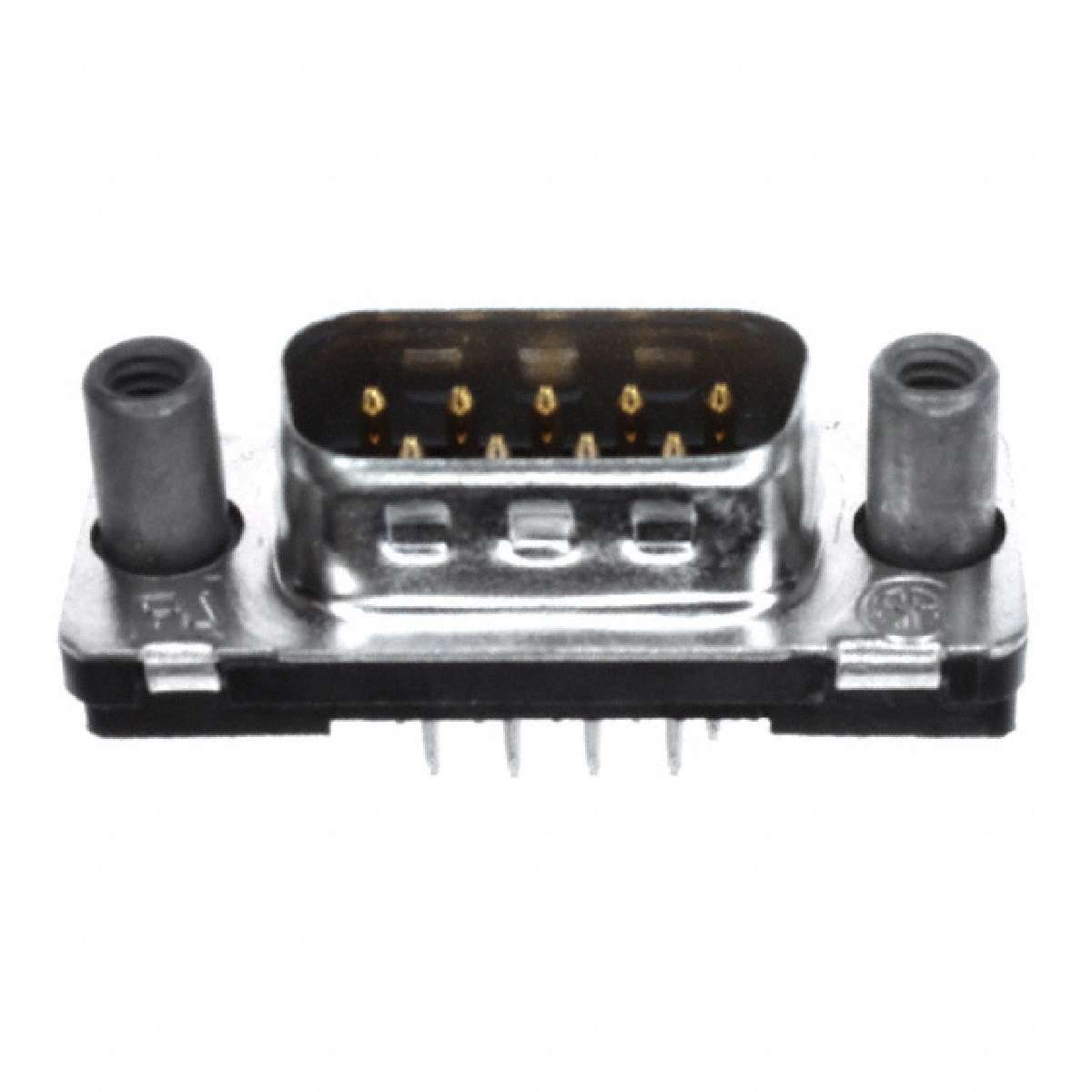

HD20 系列 9 位置 直插头 板安装 D-Sub
9 位 D-Sub 插头,公引脚
得捷:
CONN D-SUB PLUG 9POS VERT SLDR
e络盟:
连接器, D-SUB
艾睿:
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube
Allied Electronics:
AMPLIMITE HD-20 Series; 9 Way Through Hole Mount PCB D-sub Connector Plug
Jameco:
Connector D-Subminiature PIN 9 Position 2.74mm Solder Straight Thru-Hole 9 Terminal 1 Port
安富利:
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube
Verical:
Conn D-Subminiature M 9 POS 1.37mm Solder ST Thru-Hole 9 Terminal 1 Port Tube
Newark:
D Sub Connector, 9 Contacts, Plug, DE, AMPLIMITE HD-20 Series, Metal Body, Solder
MASTER:
PLUG ASSEMBLY, SIZE 1, 9 POS, VERTICAL, FRONT SHELL, AMPLIMITE HDP
Powell:
Standard Board Mount Connectors
Online Components:
09 PLUG SP/FMS SCRLK
ICbanQ:
D-Subminiature Connectors PLUG FRNT MTL SHL 9P female screwlocks
Electro Sonic:
09 PLUG SP/FMS SCRLK
触点数 9
极性 Male
触点电镀 Gold Flash, Tin, Tin over Nickel
额定电流 6A/触头
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 6A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
工作电压Max 250VDC, 250VAC
安装方式 Through Hole
封装 Metal
引脚间距 2.74 mm
长度 30.81 mm
宽度 12.54 mm
高度 11.96 mm
封装 Metal
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal, Communications & Networking, Computers & Computer Peripherals, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-5747871-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
D09P24A4GV00LF 法马通 | 功能相似 | 1-5747871-3和D09P24A4GV00LF的区别 |
L717TSEH09POL2RM8 安费诺 | 功能相似 | 1-5747871-3和L717TSEH09POL2RM8的区别 |
172-E09-113R001 NorComp | 功能相似 | 1-5747871-3和172-E09-113R001的区别 |
