1658539-2

AMP FROM TE CONNECTIVITY  1658539-2  压接金属触芯, HDP-20系列

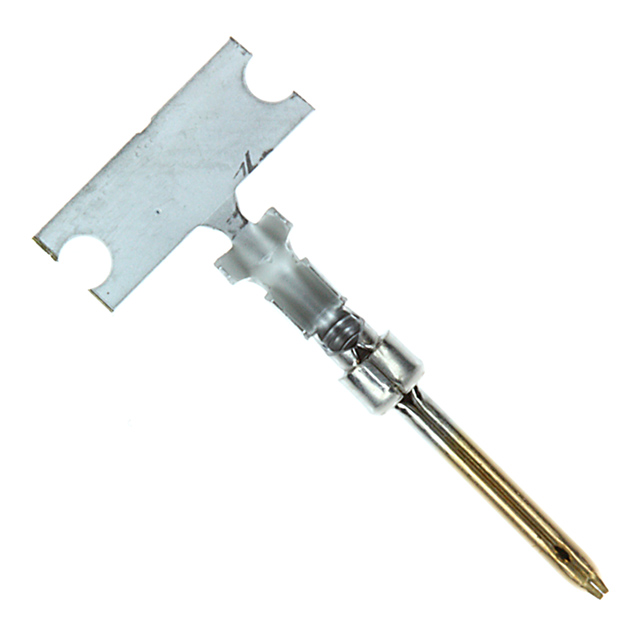

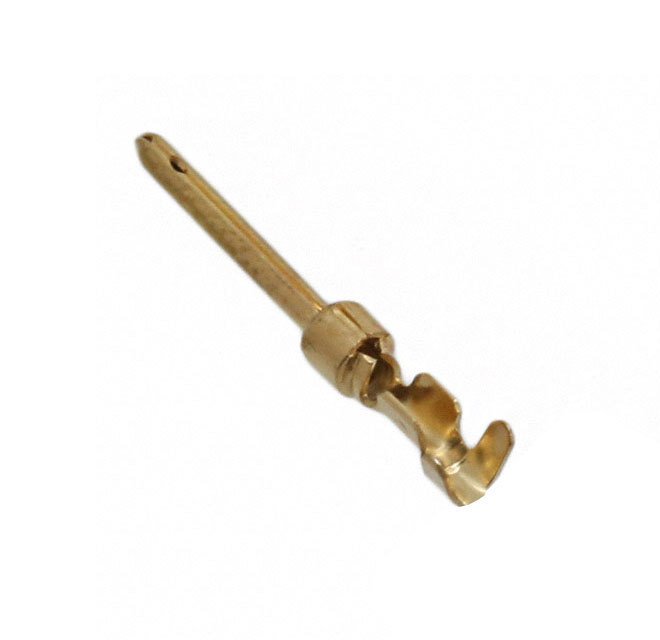

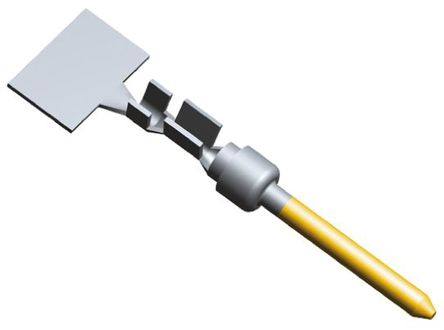

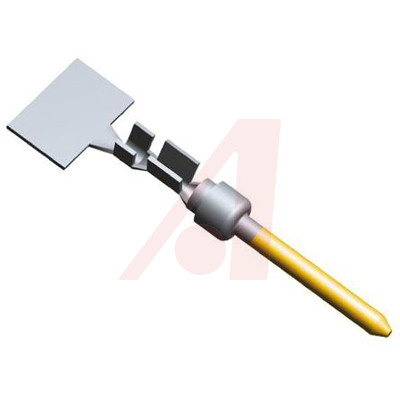

AMPLIMITE D-Sub HDP - 20 系列 20 DF 压接咬合触点

一系列 HDP-20 尺寸 20 DF 精密成型压接扣入式触点，适合与 AMPLIMITE d-sub 连接器系统一起使用。 触点使用压接工具（库存号 446-816）和插入/拔出工具（库存号 446-822）。

电镀接触面积 | 0.8μm 镀金

---|---

触点电阻 | 15mΩ（最大值）

触点材料 | 铜合金

额定电流 | 6A 插头，3A 插座

额定温度 | \- 55°C 至 +105°C

接合次数 | 100

得捷:
CONN PIN 20-24AWG GOLD CRIMP

欧时:
TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点 1658539-2, 镀金 触点

贸泽:
D-Sub Contacts PIN 24-20 BR/AU Reel of 10000

e络盟:
压接金属触芯, HDP-20系列

艾睿:
This 1658539-2 connector contact from TE Connectivity is designed to perform within the specified physical and mechanical loads to provide a solid connection. It has a straight body orientation. This has a Connector D-Subminiature connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 14.86 mm long and 2.67 mm. Its wire is 20-24 AWG. It uses the crimp termination method.

Allied Electronics:
CONTACT, PIN, HDP-20, PLATED, CRIMP, 1.27-1.52 MM

安富利:
Contact PIN Crimp ST Cable Mount Strip

Verical:
Contact PIN 20 Size Crimp ST Cable Mount 20-24AWG Strip

Newark:
# AMP - TE CONNECTIVITY  1658539-2  D Sub Contact, CPC Connectors, AMPLIMITE HDP-20, Pin, Brass, Gold Plated Contacts, 20 AWG, 24 AWG

MASTER:
PIN CONTACT, 20 DF,

Powell:
Standard Cable Connectors

Online Components:
PIN CONT DUPL PLT STRIP HD-20

ICbanQ:
CONN PIN 20-24AWG GOLD CRIMP

Electro Sonic:
PIN CONT DUPL PLT STRIP HD-20
