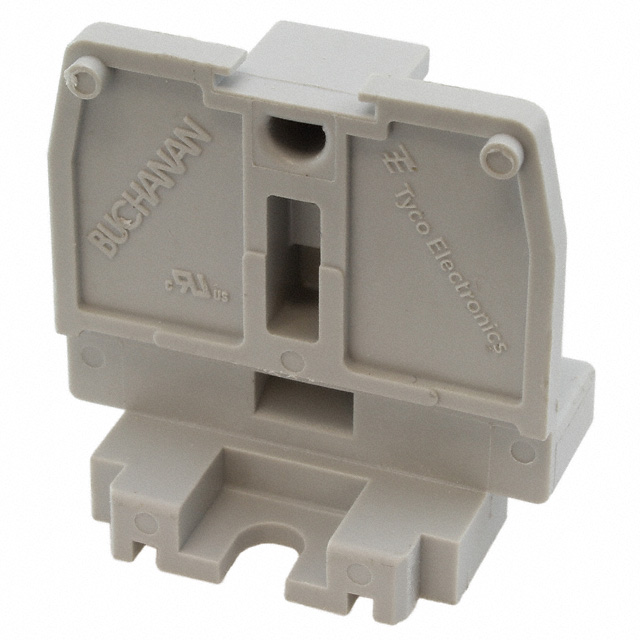

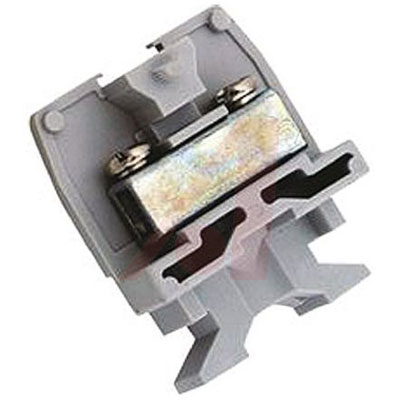

TE CONNECTIVITY / BUCHANAN 1546234-1 接线端子块/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/
接线板 - 专用 灰色 NEMA 开放式结构 10.9mm
得捷:
TERM BLK NEMA 2POS 10.85MM GRAY
贸泽:
固定接线端子 TUBULAR CLAMP FLAT
e络盟:
接线端子块/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/t/
艾睿:
Create a bridge between two sides of a circuit by implementing this nema 1546234-1 PCB terminal block from TE Connectivity. Its pitch is 9.53 mm. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. It has a straight body orientation. 1546234-1 is housed in polyester. This device has a maximum current rating of 30 A/contact. Its wire is 10-22 AWG. This product is 31.26 mm long, 31.11 mm tall and 17.78 mm deep. It uses the screw termination method.
Allied Electronics:
Conn; Term Blk; Tubular Clamp; 9.53 mm; 22-8 AWG; NEMA900Series; DirectMnt; 600V
富昌:
900系列 2 位置 9.53 mm 间距 22-10 AWG 管状 螺钉 NEMA 接线端子
Chip1Stop:
Conn NEMA 2 POS 9.53mm Screw ST Cable Mount 30A/Contact
Verical:
Conn NEMA 2 POS 9.53mm Screw ST Cable Mount 30A/Contact
MASTER:
2 Position Terminal Block Gray NEMA Open Construction 10.9mm
Powell:
NEMA Terminal Blocks
Online Components:
TUBULAR CLAMP,MD,FLATBASE,NEMA
Electro Sonic:
2 Position Terminal Block Gray NEMA Open Construction 10.9mm
触点数 2
线规 10AWG ~ 22AWG
触点电镀 Zinc
额定电压AC 600 V
额定电流 30 A
排数 1
电路数 2
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 30A/触头
工作温度Max 150 ℃
额定电压Max 600 VAC
额定电压 600 V
工作电压Max 600 VAC
安装方式 Panel, Screw
引脚间距 9.53 mm
长度 31.26 mm
宽度 31.11 mm
高度 31.11 mm
引脚间距 9.53 mm
外壳颜色 Gray
颜色 Gray
触点材质 Copper Alloy
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694030
