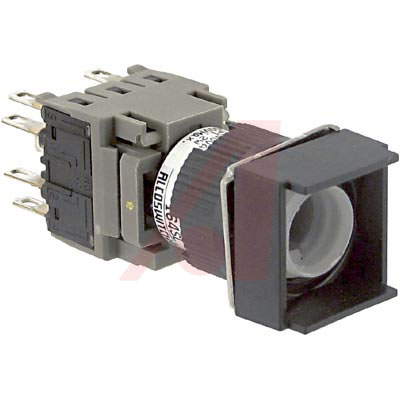

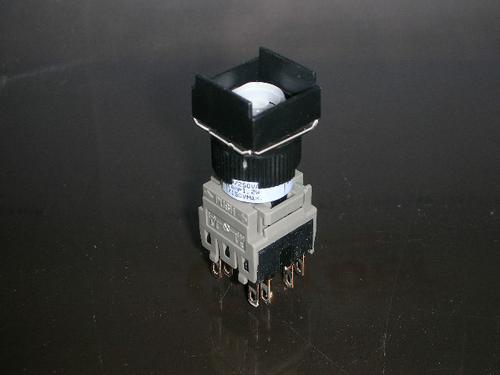

164SL22

TE CONNECTIVITY / ALCOSWITCH  164SL22  工业按钮开关, 16MM

5A, Panel Mounting Type, Pushbutton Switch

* Single actuator style

Pushbutton switch with square actuator type and panel mounted.

贸泽:
按钮开关 SQ ILL 2 NO & NC MOM

艾睿:
Ideal for low current and low voltage circuits, this 164SL22 push button switch from TE Connectivity will allow you to switch from connected to disconnected state. It has a 4PST configuration. This device has a maximum current rating of 5 A @ 250VAC 24VDC. This push switch has a minimum operating temperature of -20 °C and a maximum of 50 °C. The 164SL22 push switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 24 VDC. This product is 18 mm long, 52.5 mm tall and 18 mm deep.

Allied Electronics:
Alcoswitch; Switch; Pushbutton; Panel Mount; LED; 1500 VAC Min.; 2 N.O & 2 N.C

安富利:
Switch Push Button N.O./N.C. Square Button 5A 250VAC 24VDC 0.4VA Momentary Contact Solder Lug Panel Mount

Chip1Stop:
Switch Push Button N.O./N.C. 4PST Square Button 5A 250VAC 24VDC 0.4VA Momentary Contact Solder Lug Panel Mount

Verical:
Switch Push Button N.O./N.C. 4PST Square Button 5A 250VAC 24VDC 0.4VA Momentary Contact Solder Lug Panel Mount

MASTER:
Switch Push Button N.O./N.C. 4PST Square Button 5A 250VAC 24VDC 0.4VA Momentary Contact Solder Lug Panel Mount
