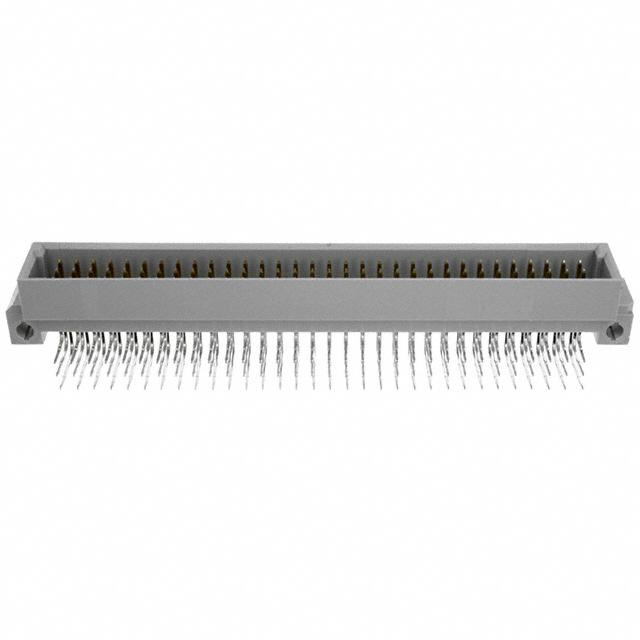

148116-5

DIN 41612 连接器 96P EURO C PIN ST 2100

96 针位 DIN 插头，公引脚 镀金 通孔，直角

得捷:
CONN DIN PLUG 96POS PCB RA GOLD

立创商城:
148116-5

贸泽:
DIN 41612 连接器 96P EURO C PIN ST 2100

艾睿:
This din 41612 148116-5 backplane connector from TE Connectivity is ideal for linking multiple connectors together. This PL connector&s;s 96 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. It has a plug type gender. Its pitch is 2.54 mm. This is a 3-row connector. This device has a maximum current rating of 1.5 A/contact. 148116-5 is housed in gray polyester. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 93.98 mm long, 11.1 mm tall and 17.73 mm deep.

安富利:
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  148116-5  096 EURO TYPE C PIN ST ASSY New

MASTER:
PIN ASSEMBLY, EUROCARD,TYPE C

Powell:
Eurocard Type C

Online Components:
096 EURO TYPE C PIN ST ASSY

Electro Sonic:
096 EURO TYPE C PIN ST ASSY
