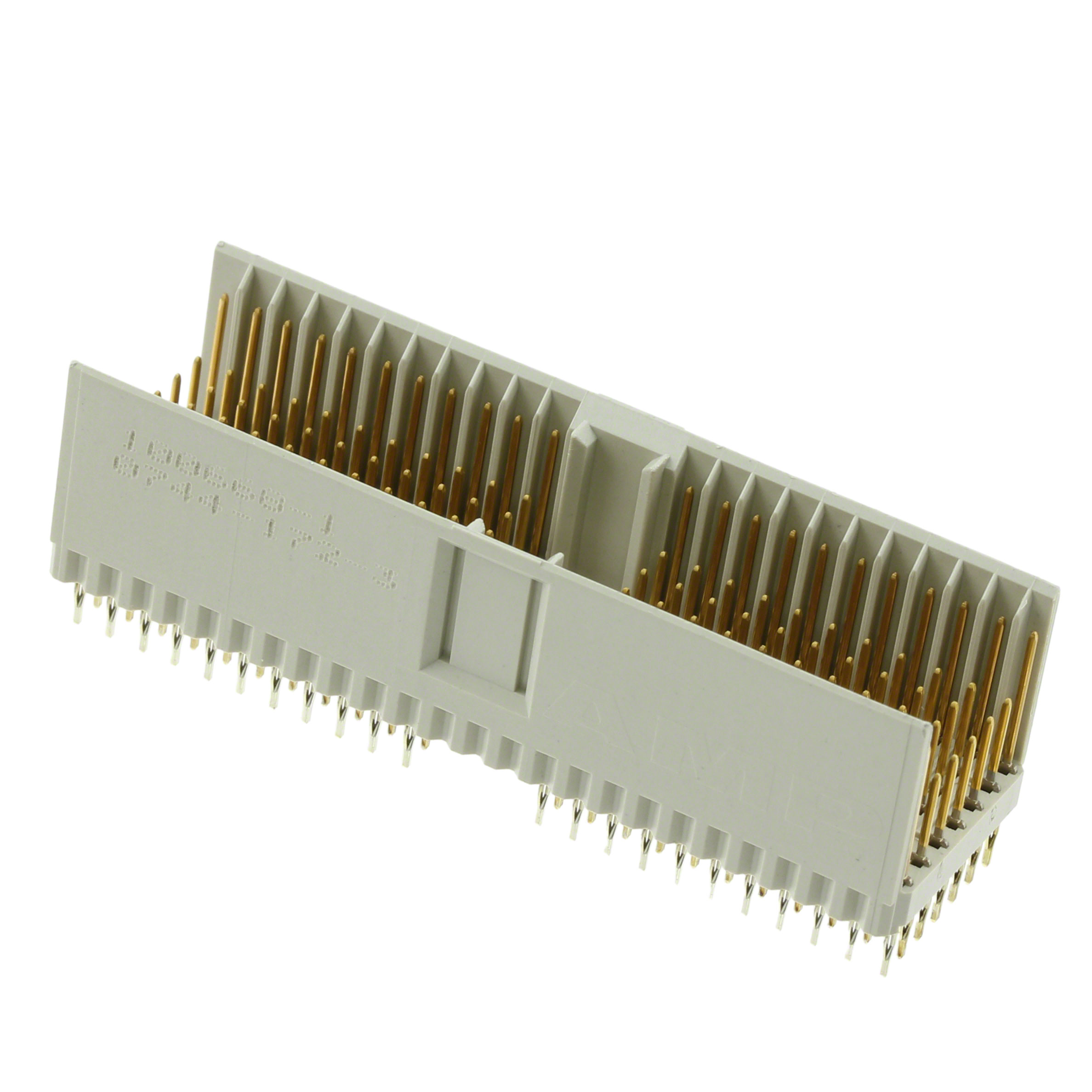

100668-1

Conn Hard Metric PL 154POS 2mm Press Fit ST Thru-Hole

Z-PACK M.ASSY.154P.

Product Highlights

Connector

Connector Type = Type A

Plug

Interface Type = 2mm HM

Contact Type = ACTION PIN Post, Signal

得捷:
CONN HEADER 154POS 2MM PRESS-FIT

立创商城:
100668-1

艾睿:
Communicate between multiple devices by linking them to this hard metric 100668-1 backplane connector from TE Connectivity. This PL connector&s;s 154 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 7-row connector. It has a plug type gender. It has a straight body orientation. Its pitch is 2 mm. It has a maximum voltage rating of 500 VAC. This device has a maximum current rating of 1.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. This backplane connector has an operating temperature of -55 to 125 °C. This product is 49.9 mm long, 13.45 mm tall and 15.4 mm deep. 100668-1 is housed in gray polyester.

Allied Electronics:
CONNECTOR, PLUG, Z-PACK 2MM HARD METRIC, 154 POSITION, TYPE A

安富利:
Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole

Chip1Stop:
Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole

Verical:
Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Automotive Tube

MASTER:
MALE ASSEMBLY, Z-PACK 2mm HM, TYPE A

Powell:
2mm Hard Metric PCB Mount Connectors Z-PACK 2mm HM

Online Components:
Z-PACK M.ASSY.154P.

Electro Sonic:
Z-PACK M.ASSY.154P.
