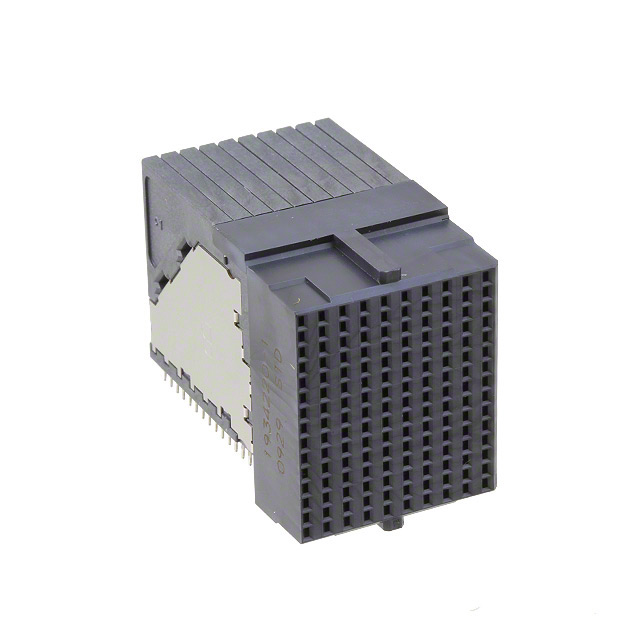

1934220-1

Conn Backplane RCP 150POS 1.9mm Press Fit RA Thru-Hole Tube

150 插座，母型插口 板边缘，通孔，直角 黑色 高速度

得捷:
CONN RCPT HD 150POS EDGE MNT

贸泽:
High Speed / Modular Connectors TIN MAN RECEPT ASSY 5 PAIR 10 COLUMN

艾睿:
When you have numerous wires connected in parallel, then use this 1934220-1 backplane connector from TE Connectivity to make sure all the data flows through. This RCP connector&s;s 150 contacts that are made out of phosphor bronze and plated with gold. It has a maximum voltage rating of 250 VAC. This is a 15-row connector. It has a receptacle type gender. It has a right angle body orientation. Its pitch is 1.9 mm. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. This backplane connector has an operating temperature of -65 to 90 °C. 1934220-1 is housed in black liquid crystal polymer.

安富利:
Conn Backplane RCP 150 POS 1.9mm Press Fit RA Thru-Hole Tube

Verical:
Conn Backplane RCP 150 POS 1.9mm Press Fit RA Thru-Hole Box/Tube

MASTER:
RECEPTACLE ASSEMBLY, 5 PAIR, 10 COLUMN

Powell:
Hard Metric Connectors TIN MAN RECEPT ASSY 5 PAIR 10 COLUMN

Online Components:
Tin Man Recept Assy 5 pair 10 Column

Electro Sonic:
Tin Man Recept Assy 5 pair 10 Column
