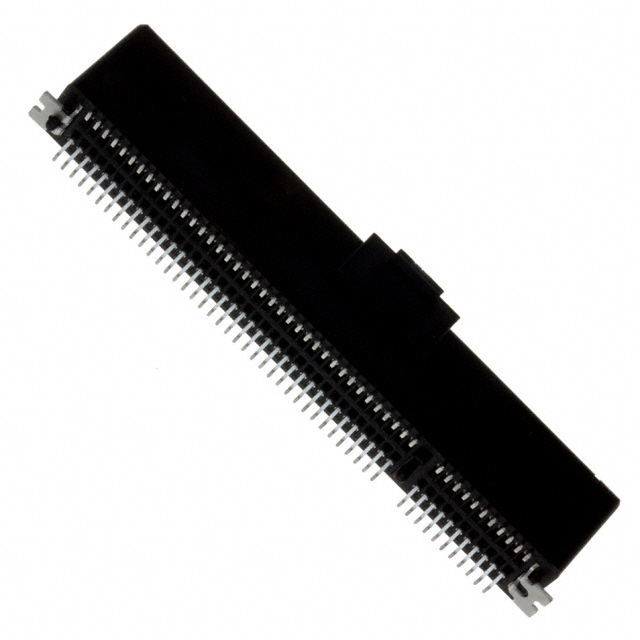

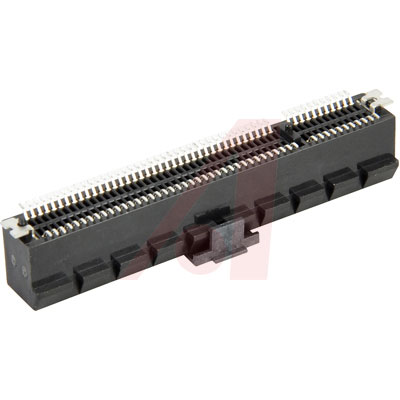

10061913-102CLF

PCI Express / PCI 连接器 98 POS SMT CONN

**Overview:**

The 1.0mm pitch vertical Card Edge Connectors are used to implement PCI Express® architecture in desktop PCs, workstations and servers.

**Features:**

* Base connector range offers 1, 4, 8, or 16 serial PCI Express links for different bandwidth requirements

* Options for through-hole solder, press-fit, surface-mount, or straddle-mount termination

* Press-fit version provides a solderless alternative for termination to thick PCBs

* Larger 200, 230 ×24, and 280-position vertical connectors supply more lanes for server riser cards

* Express Module™ versions provide an expanded lead-in window for blind-mate server applications

* Options for rugged stand-alone retention mechanism or a ×16 connector with an integrated retention arm to secure graphics cards during shipping and handling

* Straddle-mount connectors feature mounting ears for additional mechanical support and a molded post to assure proper alignment to the host PCB
