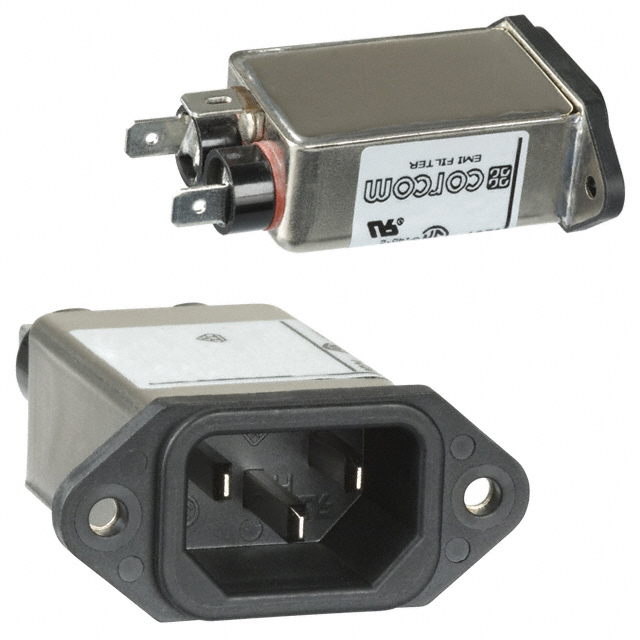

Power Line Filter EMI 50Hz/60Hz 10A 250VAC Quick Connect Panel Mount
High Performance EMI Power Inlet Filter. The three element differential mode circuit provides the highest attenuation of any available standard inlet filter.
艾睿:
Power Line Filter EMI 50Hz/60Hz 10A 250VAC Quick Connect Flange Mount
Allied Electronics:
Filter; 10 A; 1500 VAC Line-to-Ground, 1450 VDC Line-to-Line; 250 VAC; EC1
Chip1Stop:
Power Line Filter 50Hz/60Hz 10A 250VAC Quick Connect Panel Mount
Verical:
Power Line Filter EMI 50Hz/60Hz 10A 250VAC Quick Connect Panel Mount
MASTER:
Power Line Filter EMI 50Hz/60Hz 10A 250VAC Quick Connect Panel Mount
Electro Sonic:
Power Line Filter EMI 50Hz/60Hz 10A 250VAC Quick Connect Panel Mount
额定电压DC 250 V
额定电压AC 250 V
工作电压 250 VAC
额定电流 10 A
电容 0.201 µF
针脚数 3
电感 360 µH
额定电流Max 10 A
工作温度Max 40 ℃
工作温度Min -10 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Flange
长度 50.3 mm
宽度 30.2 mm
高度 20.6 mm
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
10EC1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
