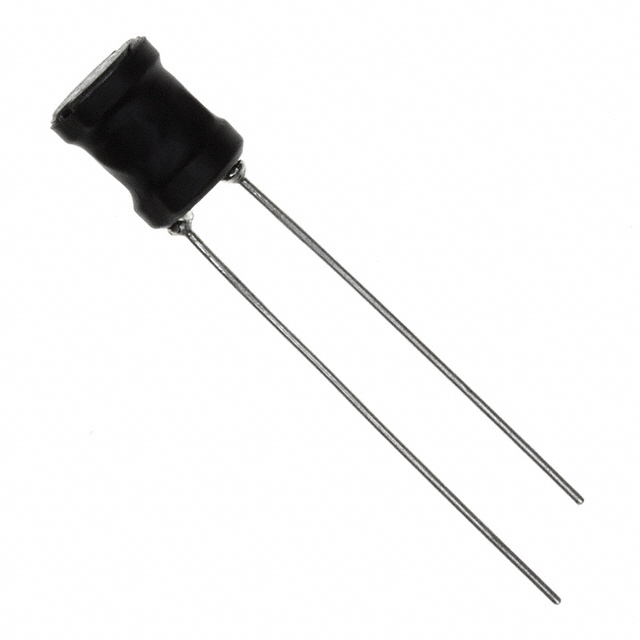

MURATA POWER SOLUTIONS 13R332C 电感, 3.3uH, 20% 4.8A 通孔安装 径向引线

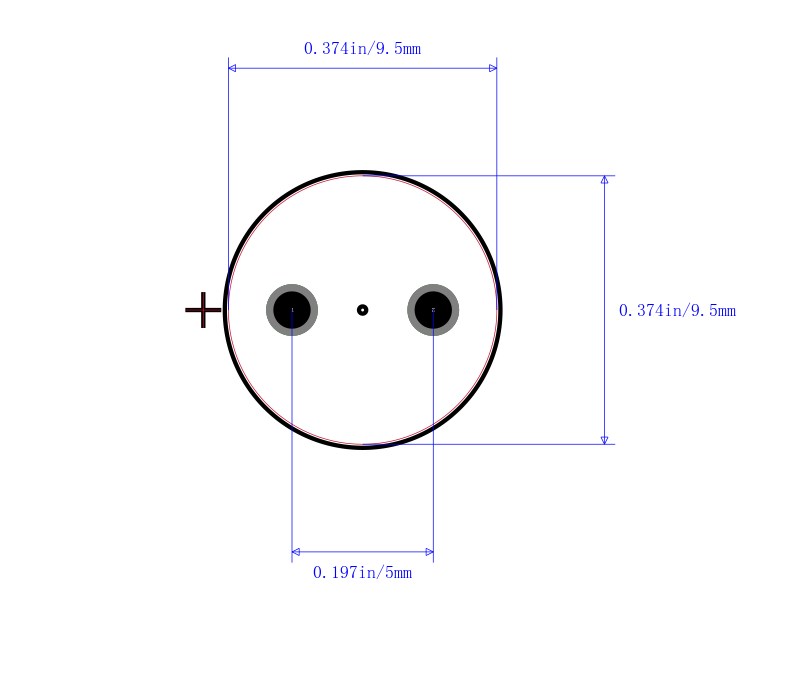

This general purpose leaded inductor from Murata resists changes in electric current passing through it. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. This device utilizes wirewound technology. Its test frequency is 1K Hz. This product is 13.5 mm tall with a diameter of 9.5 mm. It has an inductance of 3.3u H. This leaded inductor has a maximum DC current of 4.8 A with a maximum resistance of 13m Ohm. It has a tolerance of 20%.
额定电流 4.8 A
容差 ±20 %
电感 3.3 µH
电感公差 ±20 %
测试频率 1 kHz
电阻DC） 0.013 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.013 Ω

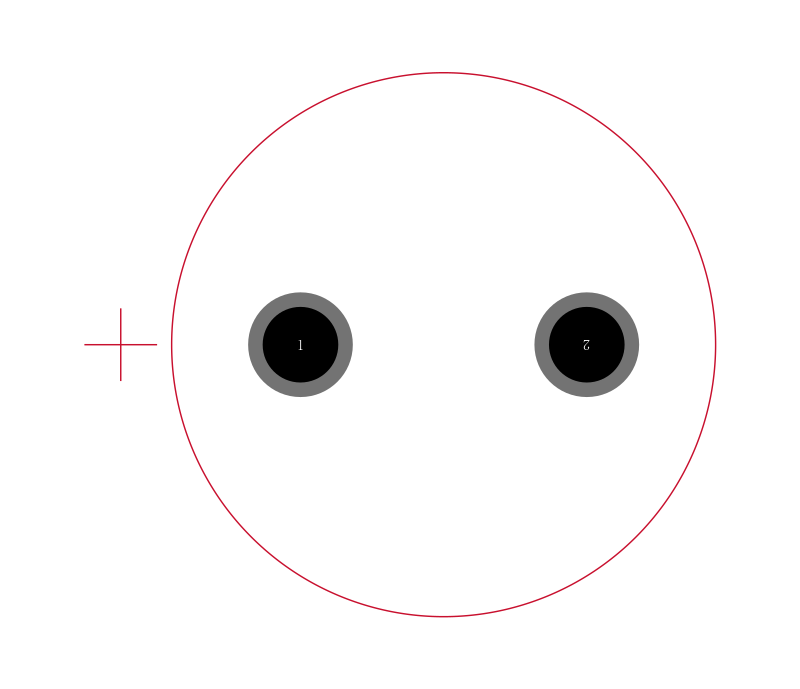

安装方式 Through Hole
引脚数 2
封装 Radial
长度 13.5 mm
高度 13.5 mm
封装 Radial
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
