1415449C

Murata 1400 系列高电流径向电感器设计用于电力线应用，例如开关调节器、滤波器和抑制电路采用高饱和度通量密度材料 构造，允许在高电流应用场合中使用 适合于印刷电路板或通过中心固定洞使用非磁性扣件的底盘安装 使用易于剥离的预镀锡搪瓷铜引线进行端接 导线长度 10mm 工作温度：-40 → +85°C 电感容差：±10% 选择指南和尺寸 --- 库存号 | 电感 | 额定电流 | 直径 | 高度 | 引线直径 | 节距 228-416 | 100 uH | 5.4 A | 24.4 mm | 14.0 mm | 1.02 mm | 23.6 mm 228-422 | 220 uH | 3.5 A | 24.4 mm | 14.0 mm | 0.85 mm | 23.5 mm 228-438 | 330 uH | 2.8 A | 24.4 mm | 14.0 mm | 0.76 mm | 23.4 mm 228-444 | 470 uH | 2.3 A | 24.4 mm | 14.0 mm | 0.67 mm | 23.3 mm 228-551 | 1.0 mH | 1.6 A | 24.4 mm | 14.0 mm | 0.60 mm | 23.2 mm 228-567 | 3.3 mH | 0.7 A | 24.4 mm | 14.0 mm | 0.60 mm | 23.0 mm 228-573 | 10 mH | 0.4 A | 24.4 mm | 14.0 mm | 0.34 mm | 22.9 mm 228-589 | 100 uH | 7.8 A | 29.8 mm | 21.8 mm | 1.30 mm | 29.3 mm 228-595 | 220 uH | 5.5 A | 29.8 mm | 21.8 mm | 1.14 mm | 29.1 mm 228-602 | 330 uH | 4.5 A | 29.8 mm | 21.8 mm | 1.02 mm | 29.0 mm 228-618 | 470 uH | 4.0 A | 29.8 mm | 21.8 mm | 0.97 mm | 29.0 mm ### Murata 引线电感器（扼流圈）

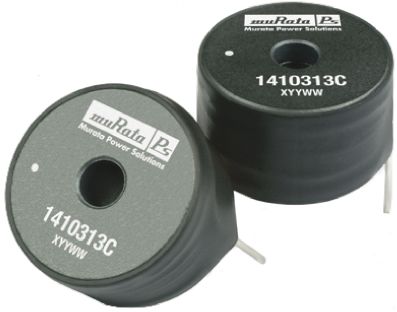

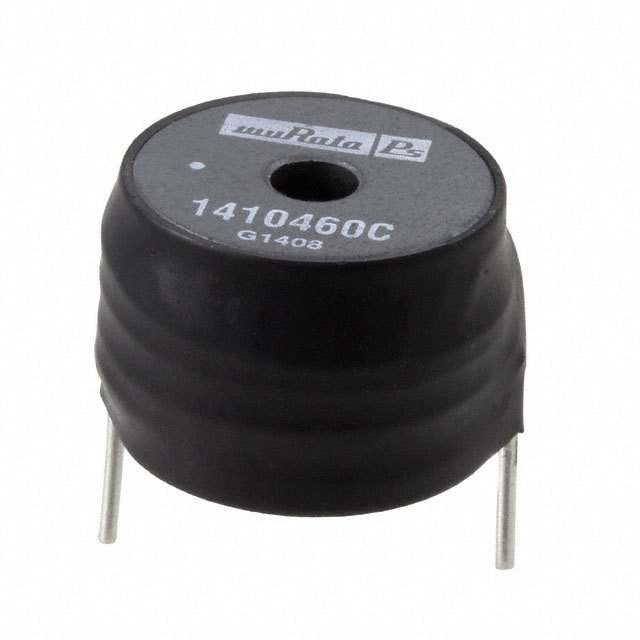

Murata 1400 系列高电流径向器

设计用于电力线应用，例如开关调节器、滤波器和抑制电路采用高饱和度通量密度材料

构造，允许在高电流应用场合中使用

适合于印刷电路板或通过中心固定洞使用非磁性扣件的底盘安装

使用易于剥离的预镀锡搪瓷铜引线进行端接

导线长度 10mm

工作温度：-40 → +85°C

电感容差：±10%

### Murata 引线电感器（扼流圈）

得捷:
FIXED IND 150UH 4.9A 55 MOHM TH

欧时:
Murata 1400 系列 150 μH ±10% 1415449C 线轴电感器, 2.9MHz最大自谐振频率, 34最小质量系数, 4.9A Idc

贸泽:
固定电感器 150uH4.9A 22x18

艾睿:

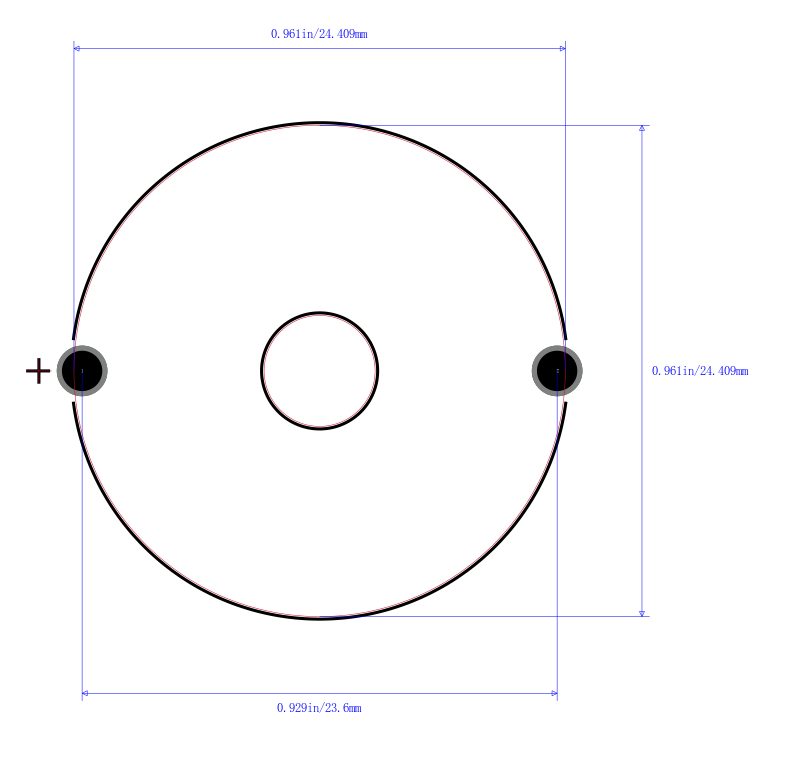

This general purpose 1415449C leaded inductor from Murata Power Solutions is very suitable for tape and reel packaging for auto placement. This part has a pitch of 23.6 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. This product is 27.9 mm long, 20 mm tall and 25.9 mm deep. This device utilizes bobbin core technology. It has an inductance of 150u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.9MTyp Hz. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 4.9 A with a maximum resistance of 55m Ohm.

安富利:
Ind Bobbin Core 150uH 10% 1KHz 34Q-Factor 4.9A RDL

Verical:
Inductor General Purpose Bobbin Core 150uH 10% 1KHz 34Q-Factor 4.9A 55mOhm DCR RDL Carton

儒卓力:
**1400 150uH 4,9A 10% **
