非常高的电流容量 Very high current capacity

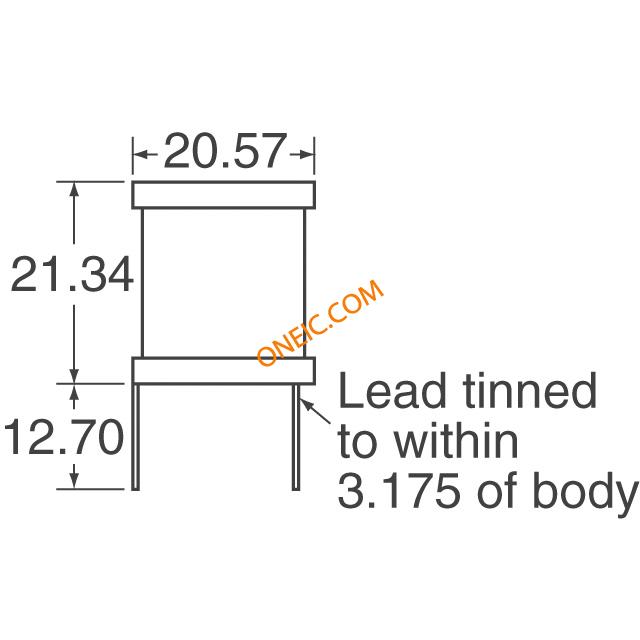

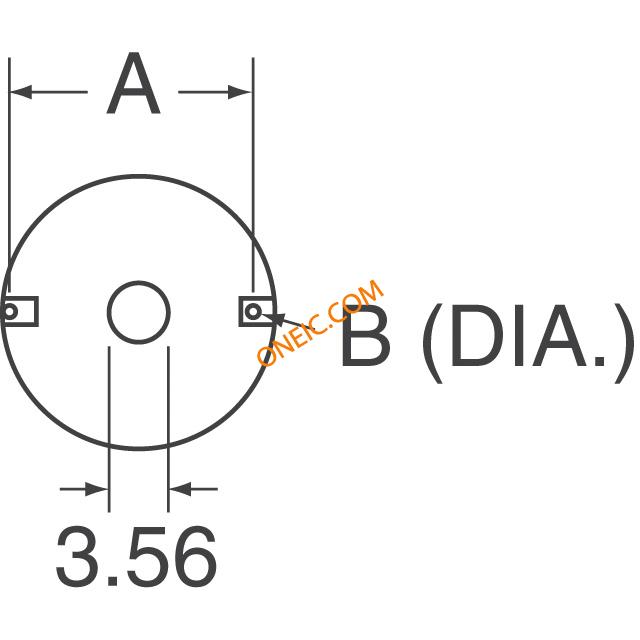

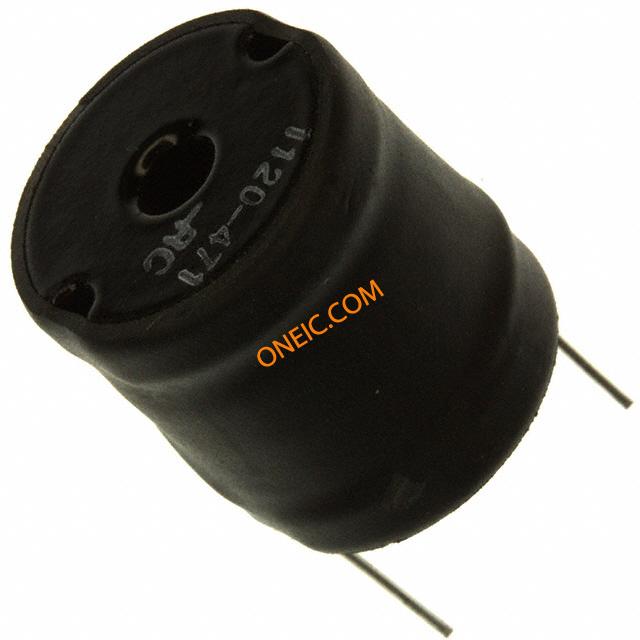

This high current rf choke leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 15.24 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 1K Hz. It has a tolerance of 10%. This product is 21.34 mm tall with a diameter of 20.57 mm. It has an inductance of 470u H. This device is made with bobbin core technology. This leaded inductor has a maximum DC current of 1.6 A with a maximum resistance of 355m Ohm.
额定电流 1.6 A
容差 ±10 %
电感 470 µH
屏蔽 No
电感公差 ±10 %
测试频率 1 kHz
电阻DC） ≤355 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 355 mΩ

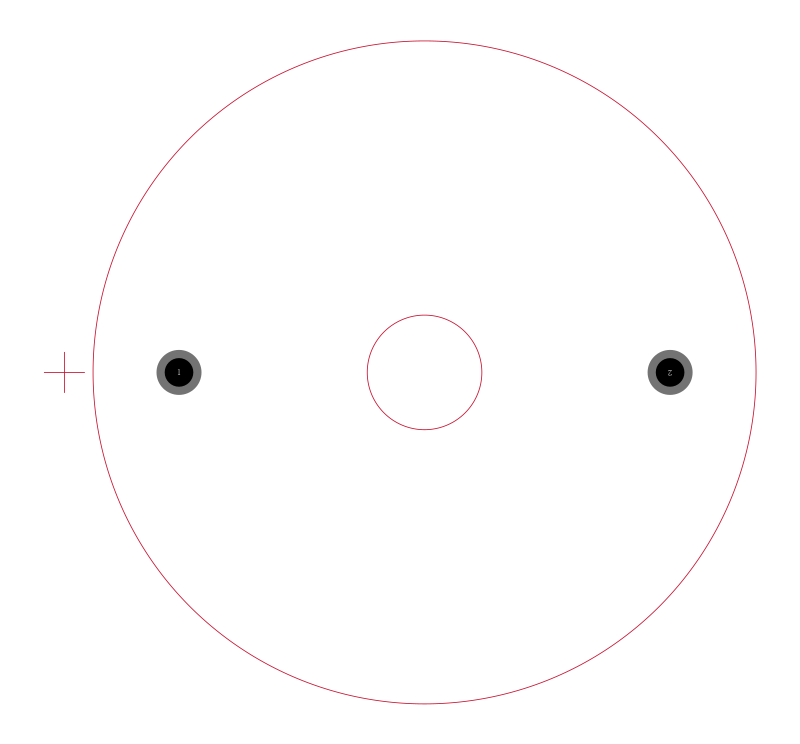

安装方式 Through Hole
引脚数 2
封装 Radial
长度 0.84 in
高度 21.34 mm
直径 20.6 mm
脚长度 12.7 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1120-471K-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
1120-471K 伯恩斯 | 完全替代 | 1120-471K-RC和1120-471K的区别 |
