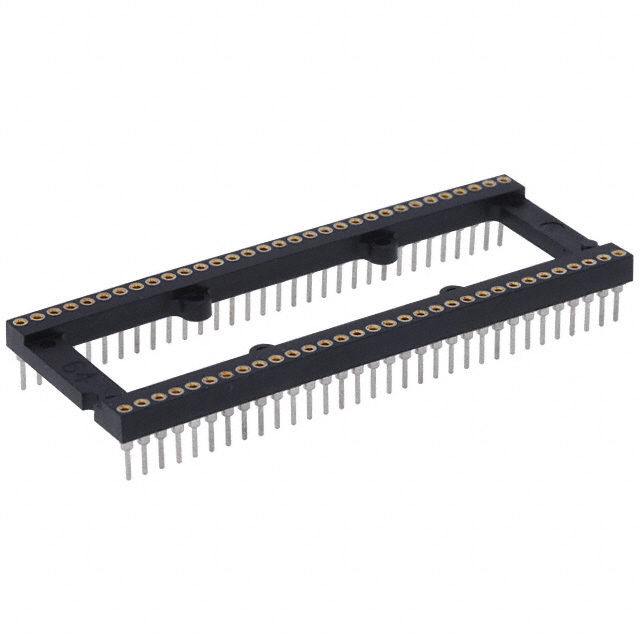

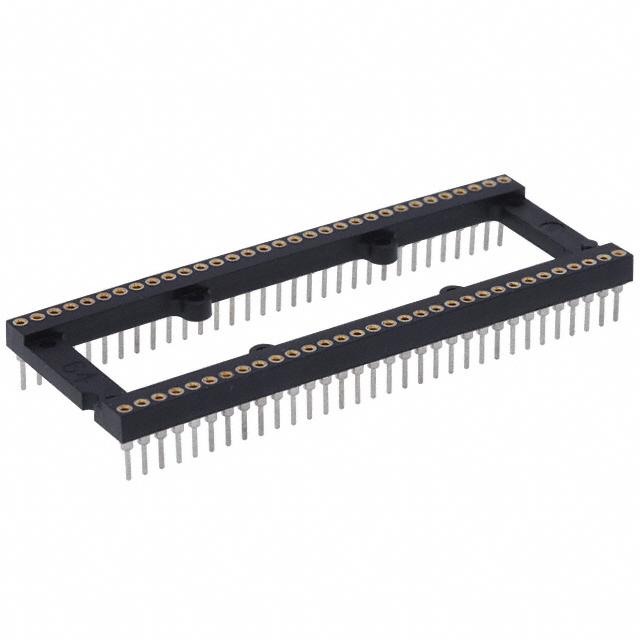

117-43-764-41-005000

IC 与器件插座 64 PIN SOLDER TAIL

IC Socket, Wrapost Tail with Open Frame

* Gold over nickel contact

DIP socket, wrapost tail 3 lever open frame, gold over nickel plating contact.

得捷:
CONN IC DIP SOCKET 64POS GOLD

贸泽:
IC 与器件插座 64 PIN SOLDER TAIL

艾睿:
Cleanly connect multiple wires together by using this dip socket 117-43-764-41-005000 connector socket from Mill-Max Mfg. Corp. This SKT connector&s;s 64 contacts that are made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 1.78 mm. It has a socket type gender. This is a 2-row connector. 117-43-764-41-005000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. This product is 57.2 mm long, 4.19 mm tall and 21.34 mm deep. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Allied Electronics:
SOCKET, DIP, OPEN, THRU-HOLE, HIGH TEMPINSULATOR, SHRINK, SOLDER, 64 PIN

Chip1Stop:
Conn DIP Socket SKT 64 POS 1.78mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 64 POS 1.78mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  117-43-764-41-005000  IC & Component Socket, 117 Series, DIP Socket, 64 Contacts, 1.78 mm, 19.05 mm, Gold Plated Contacts
