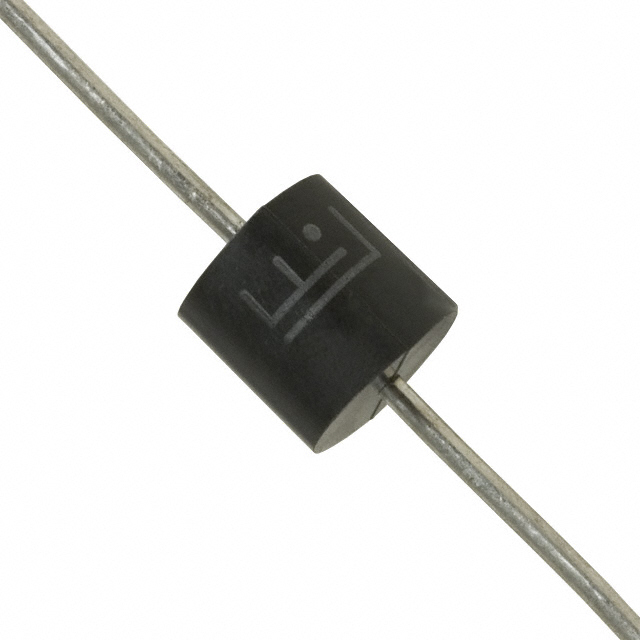

15KPA60CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

97.4V Clamp 155A Ipp Tvs Diode Through Hole P600

得捷:
TVS DIODE 60VWM 97.4VC P600

立创商城:
双向 Vrwm:60V 15kW

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this 15KPA60CA TVS diode from Littelfuse. This device&s;s maximum clamping voltage is 97.4 V and minimum breakdown voltage is 67 V. Its maximum leakage current is 2 μA. Its test current is 5 mA. Its peak pulse power dissipation is 15000 W. This TVS diode has an operating temperature range of -55 °C to 175 °C.

富昌:
15KPA Series 60 V 1.5 kW Through Hole Bi-Directional TVS Diode - P-600

Chip1Stop:
Diode TVS Single Bi-Dir 60V 15KW 2-Pin Case P-600 Tape and Ammo

TME:
Diode: transil; 15kW; 70.2V; 155A; bidirectional; ±5%; P600

Verical:
Diode TVS Single Bi-Dir 60V 15KW 2-Pin Case P-600 Ammo
