MURATA POWER SOLUTIONS 18R333C 电感, 径向引线, 33uH, 10% 2.0A

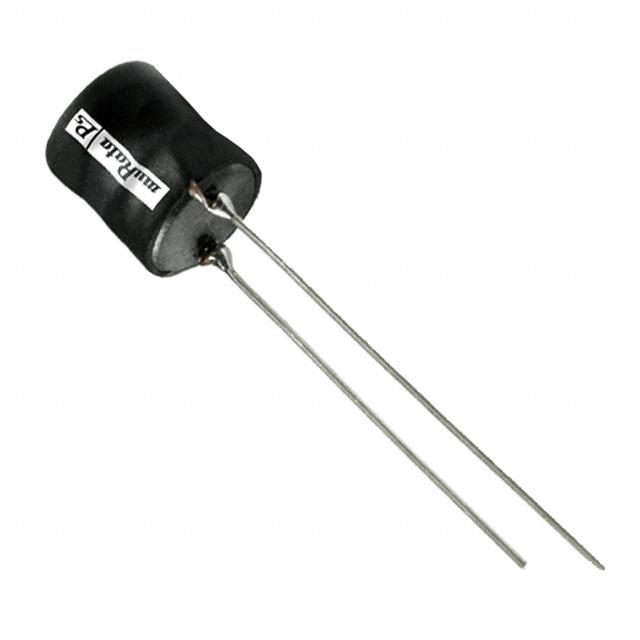

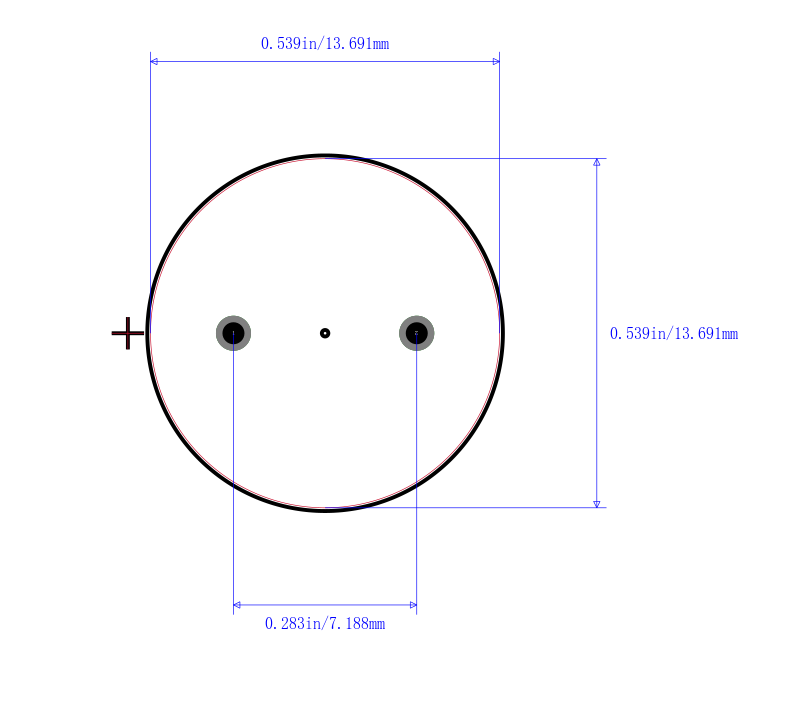

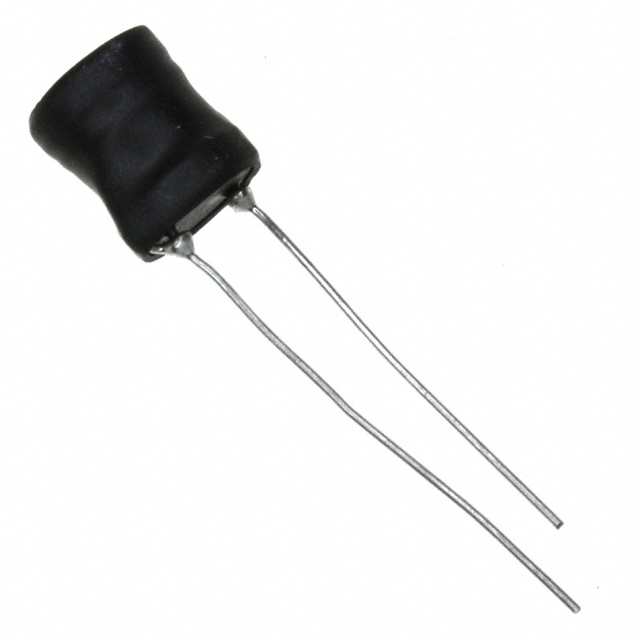

This high current leaded inductor from Murata Power Solutions is convenient and easily removable. This part has a pitch of 7.2 mm. This leaded inductor has an operating temperature range of 0 °C to 70 °C. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 2 A with a maximum resistance of 40m Ohm. It has a tolerance of 10%. It has an inductance of 33u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 11.5MTyp Hz. This product is 15.9 mm tall.
额定电流 2 A
容差 ±10 %
电感 33 µH
自谐频率 11.5 MHz
Q值 48.0
电感公差 ±10 %
测试频率 1 kHz
电阻DC） ≤40 mΩ
工作温度Max 70 ℃
工作温度Min 0 ℃
电阻DC Max 0.04 Ω

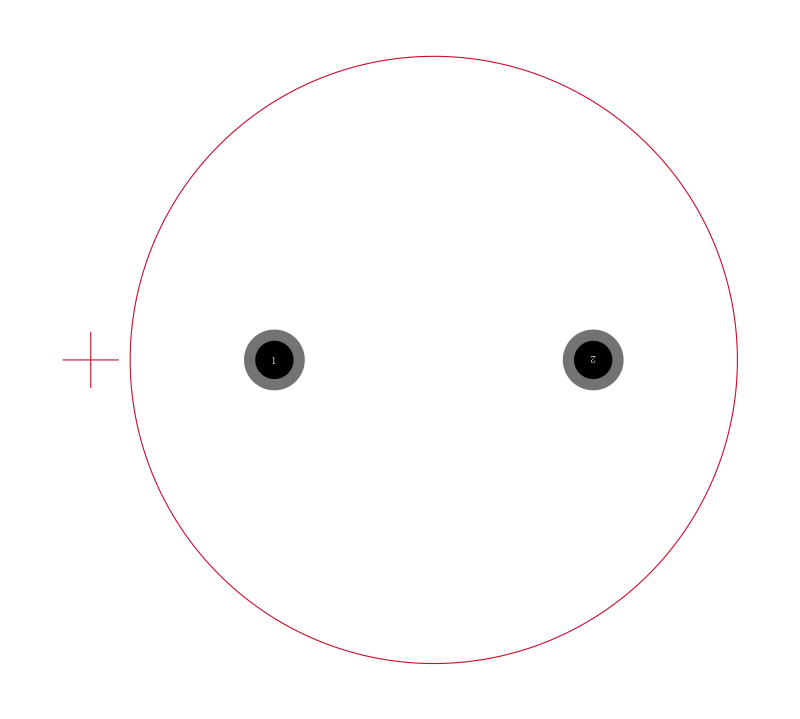

安装方式 Through Hole
引脚数 2
长度 13.7 mm
高度 15.9 mm
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
18R333C muRata 村田 | 当前型号 | 当前型号 |
MCSCH895-330KU Multicomp | 功能相似 | 18R333C和MCSCH895-330KU的区别 |
18R333 C&D Technologies | 功能相似 | 18R333C和18R333的区别 |
