Conn SO DIMM Socket SKT 200POS 0.6mm Solder RA SMD Tray
位置 SODIMM DDR2 SDRAM 个插口 表面贴装,直角
得捷:
CONN SKT SODIMM 200POS R/A SMD
欧时:
DDR SODIMM SOCKET 200P 8H STD TYPE
艾睿:

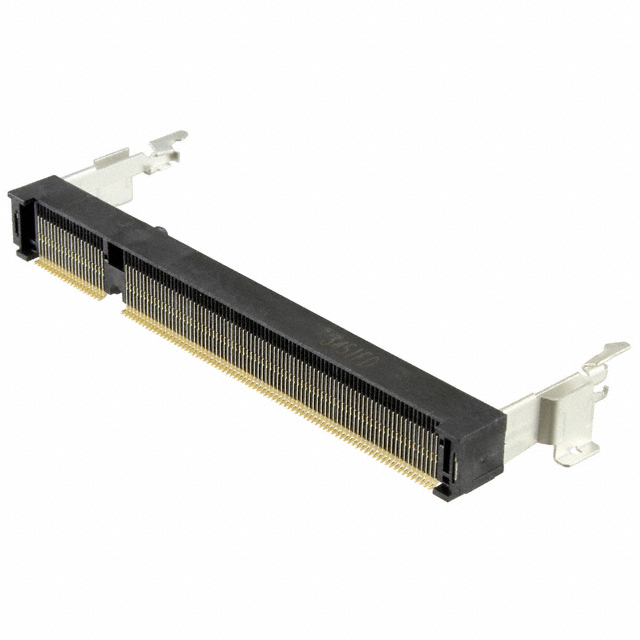

Obtaining a strong and tight connection for when you have multiples wires on a cable can be accomplished with this so dimm socket 1827341-4 connector socket from TE Connectivity. This SKT connector&s;s 200 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 0.6 mm. This is a 2-row connector. It has a socket type gender. It has a right angle body orientation. 1827341-4 is housed in thermoplastic. It is insulated with thermoplastic. This product is 75.89 mm long, 8 mm tall and 26.5 mm deep. It uses the solder termination method.
安富利:
Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray
Verical:
Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray
MASTER:
DDR1 & DDR2 SODIMM SOCKET 0.6mm PITCH 200POS 8mm HEIGHT STANDARD TYPE LATCH DIRECT SOLDERING TYPE
Powell:
Memory Sockets
Online Components:
DDR SODIMM SOCKET 200P 8H STD TYPE
Electro Sonic:
DDR SODIMM SOCKET 200P 8H STD TYPE
触点数 200
触点电镀 Gold, Gold over Nickel
额定电流 0.5A/触头
排数 2
易燃性等级 UL 94 V-0
针脚数 200
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 1.8 V
额定电压 1.8 V
安装方式 Surface Mount
封装 200
高度 8 mm
封装 200
外壳颜色 Black
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Tray
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
