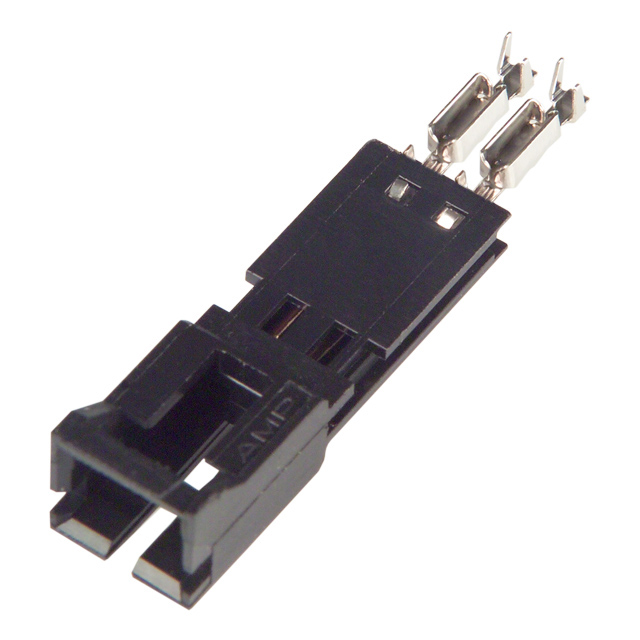

103945-1

Conn IDC Connector PIN 2POS 2.54mm IDT ST Cable Mount Tube

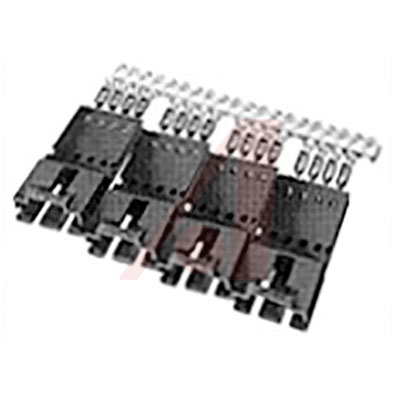

**AMPMODU MTE 2.54mm IDC Strip Form Shrouded Polarized/Latching Pin Assemblies**

AMPMODU MTE 2.54mm IDC pin assemblies with integral latching and polarization. These MTE 2.54mm IDC plug assemblies are made from black 94V-0 rated thermosplastic, have phosphor bronze IDC crimp contacts with a choice of platings please refer to table and are supplied in strip form, for number of housing quantities per strip please see table.

得捷:
CONN PLUG 2POS IDC 22-26AWG GOLD

贸泽:
Headers & Wire Housings PIN ASSEMBLY 2P

艾睿:
Thanks to TE Connectivity&s;s idc connector 103945-1 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This PIN connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 7.49 mm long, 6.6 mm tall and 24.13 mm deep. It uses the idt termination method. This connector has an operating temperature of -65 to 105 °C. 103945-1 is housed in black thermoplastic.

Allied Electronics:
AMPMODU MTE Series 2.54mm Pitch 2 Way 1Row Male Straight PCB Connector Housing

Jameco:
Connector IDC Connector Receptacle 2 Position 2.54mm IDT Straight Cable Mount Strip

安富利:
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip

Chip1Stop:
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Tube

Verical:
Conn Wire to Board M 2 POS 2.54mm IDT ST Cable Mount Tube

Newark:
# AMP - TE CONNECTIVITY  103945-1  8X2 MTE SHRD PIN SR LATCH .100

MASTER:
SHROUDED PIN ASSY, AMPMODU MTE, SINGLE ROW, .100 CL, POLARIZED, W/ LATCH WINDOWS, FOR #22-#26 AWG WIRE SIZE, STRIP FORM

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
8X2 MTE SHRD PIN SR LATCH .100

Electro Sonic:
8X2 MTE SHRD PIN SR LATCH .100
