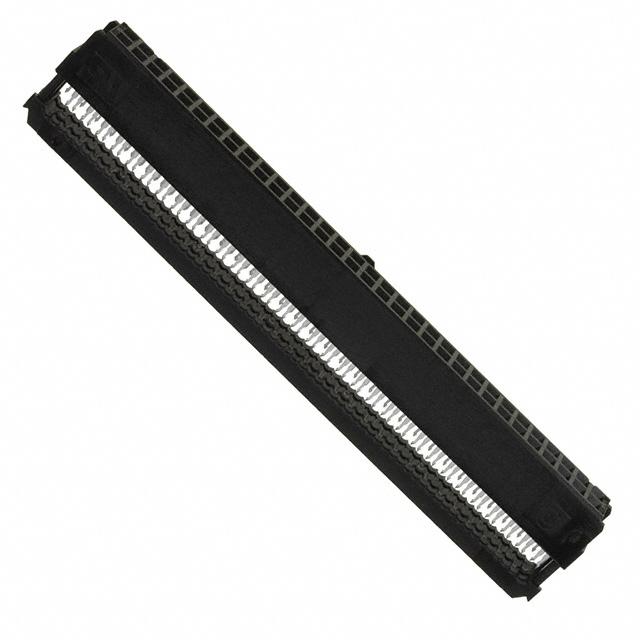

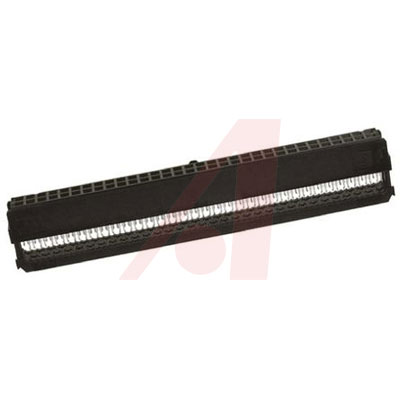

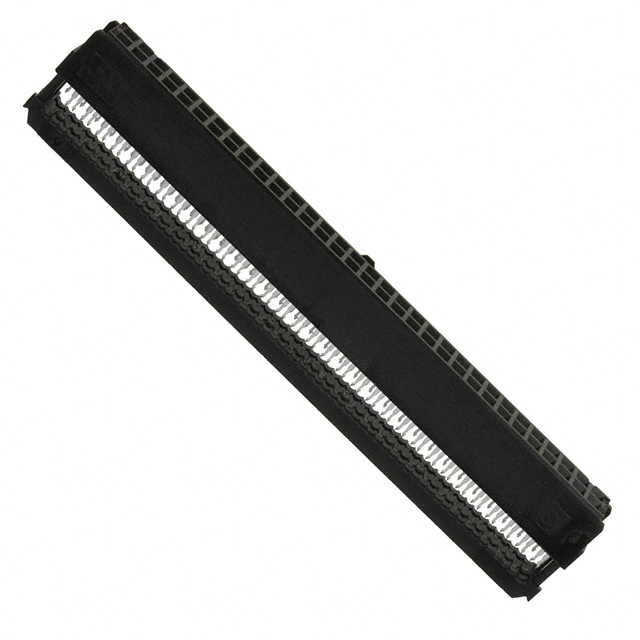

AMP FROM TE CONNECTIVITY 1-1658622-2 线至板连接器, AMP-LATCH Novo系列, 64 触点, 插座, 2.54 mm, IDC / IDT, 2 排
The is a 64-way 2-row 0.100 x 0.100-inch Ribbon Cable Receptacle with gold-plated phosphor bronze contacts. It features black thermoplastic housing, center and military polarized. The tuning fork contact transmits signal data. Novo receptacles offer a dual contact interface with all normal force created by metal-to-metal contact. This provides a higher degree of contact reliability. Novo receptacles can be terminated to 0.05-inch pitch ribbon cable by a wide variety of one-step application tooling.
- .
- Low profile
- .
- Contact design provides uniform latching of contacts and housing with connector cover
- .
- UL94V-0 Flammability rating
- .
- 1A Contact current rating
- .
- 250VAC Voltage rating
- .
- 5000MR Insulation resistance
- .
- -65 to 105°C Operating temperature range
触点数 64
极性 Female
线规 26AWG ~ 28AWG
触点电镀 Nickel, Gold
额定电流 1 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 64
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
接触电阻Max 15 mΩ
安装方式 Through Hole
封装 100
引脚间距 2.54 mm
长度 85.9 mm
宽度 6.10 mm
高度 15.16 mm
封装 100
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
HTS代码 8536694040
