169111-1

TE Connectivity SUPER CHAMP II 手动压接工具，用于“F”压接开放式套管接线端子 SUPER CHAMP II 手动压接工具，用于压接“F”压接开放式套管接线端子，带 22-10 AWG 0.4-6.0 mm2 TE Connectivity 手动压接工具

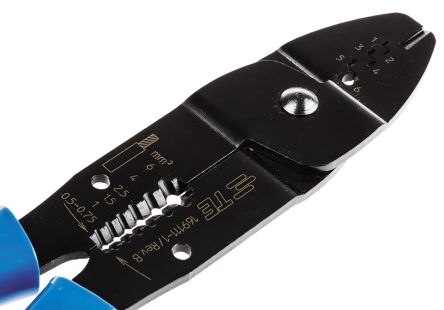

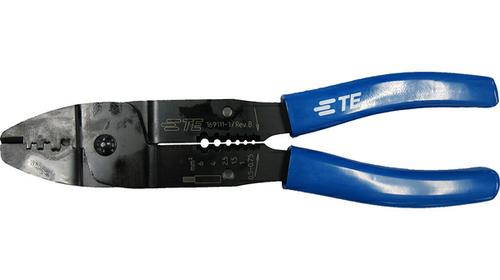

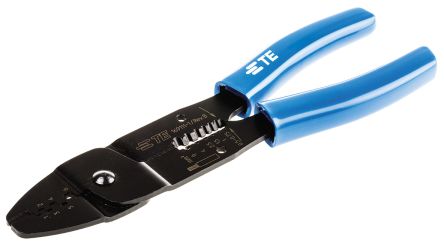

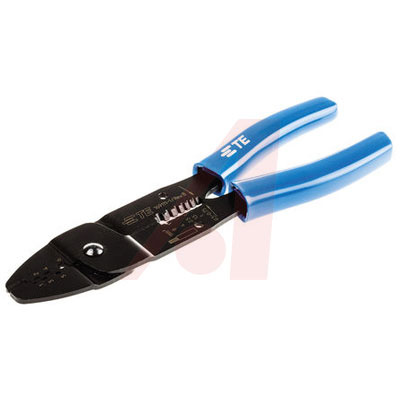

** SUPER CHAMP II Hand Crimp tool for "F" Crimp Open Barrel Terminals**

SUPER CHAMP II hand crimp tool for crimping "F" crimp open barrel terminals with a wire size range of 22-10 AWG 0.4-6.0 mm2. The following crimp widths can be achieved: 2.2, 2.4, 2.8, 3.2, 3.8 and 4.8mm. This SUPER CHAMP II hand crimp tool can also be used for stripping the following wire sizes: 0.5-0.75, 1.0, 1.5, 2.5, 4 & 6mm
