Phoenix Contact MINI COMBICON MC 3.5mm 印刷电路板端子块管座MINI COMBICON MC 1,5 系列 3.5mm 节距插入式单电平直角印刷电路板通孔安装有罩端子块管座。 部件号前缀为 1843 和 1763 的库存号具有螺纹法兰 部件号前缀为 1817 的库存号具有螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
得捷:

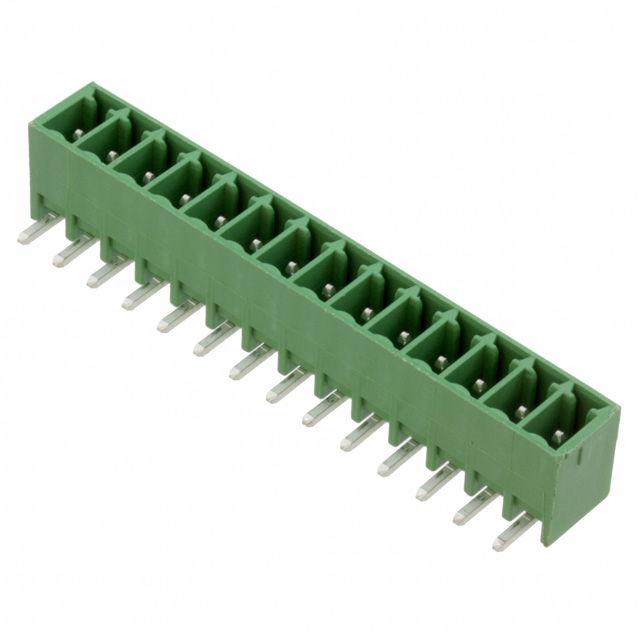

TERM BLOCK HDR 14POS 90DEG 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 14路 3.5mm节距 1844333, 焊接端接, 8A
贸泽:
Pluggable Terminal Blocks 14 Pos 3.5mm pitch Through Hole Header
艾睿:
Use this shrouded 1844333 connector from Phoenix Contact when board-to-board interconnects is required. This HDR connector has 14 contacts that are plated with tin. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a header type gender. Its pitch is 3.5 mm. This device has a maximum current rating of 8 A. This product is 50.4 mm long, 7.25 mm tall and 9.2 mm deep. 1844333 is housed in green polybutylene terephthalate. It uses the solder termination method.
Verical:
Conn Wire to Board HDR 14 POS 3.5mm Solder RA Side Entry Thru-Hole Cardboard
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 14 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Shrouded Header HDR 14 POS 3.5mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
