DIN InsertsCoaxial inserts according to CECC 22 330. Coaxial inserts have a contact system based on the pin-socket principle with the same dimensions as the Series 1.0/2.3 coaxial connectors and are plug-compatible. Installation into the contact base is by means of a "snap-in" lock makes the inserts particularly well suited for applications. Coaxial plugs are installed in contact bases with audio-frequency AF female contacts, coaxial jacks are installed in contact bases with AF male contacts.For DIN 41612 style M see stock number 681-2183 typical ### TE Connectivity 75Ω 系列 1.0/2.3 射频同轴插头和插孔
DIN 插件
同轴插件符合 CECC 22 330。同轴插件具有基于引脚插座原理的触点系统，具有与系列 1.0/2.3 同轴相同的尺寸且可兼容插头。可通过咬接式锁将插件安装到触点基座中，使其特别适合应用。采用音频频率 AF 包容式触点将同轴插头安装到触点基座中，采用 AF 插入式触点将同轴插孔安装在触点基座中。
有关 DIN 41612 M 型，请参见典型库存号 681-2183
得捷:
CONTACT PIN COAXIAL GOLD
欧时:
TE Connectivity 母 印刷电路板安装 直角 DIN 41612 连接器 1-1393662-4, 焊接端接, 隔板
艾睿:
This specially engineered 1-1393662-4 connector contact from TE Connectivity provides a solid connection between the contact barriers so your connections remain secure. It has a right angle body orientation. It has a socket type gender. This has a Connector Backplane connector. The item will be shipped in tray orientation. This product is 6.4 mm tall. It uses the solder termination method.
Allied Electronics:
Right Angle Coaxial Conn Female PCB Mount DIN 41612 Conn, Solder Termination
安富利:
Contact SKT Solder RA Thru-Hole
Newark:

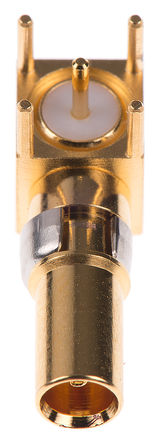

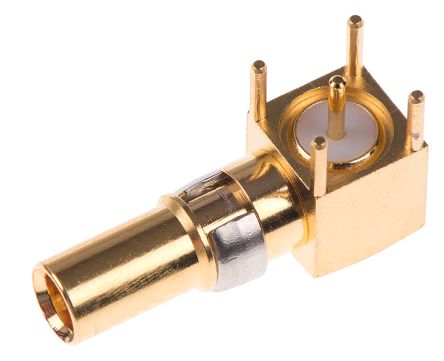

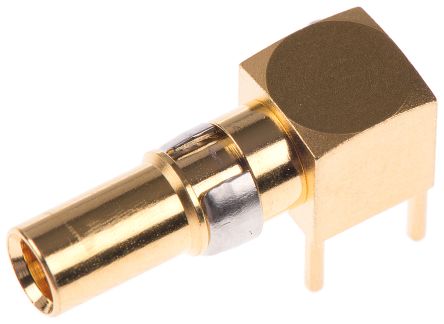

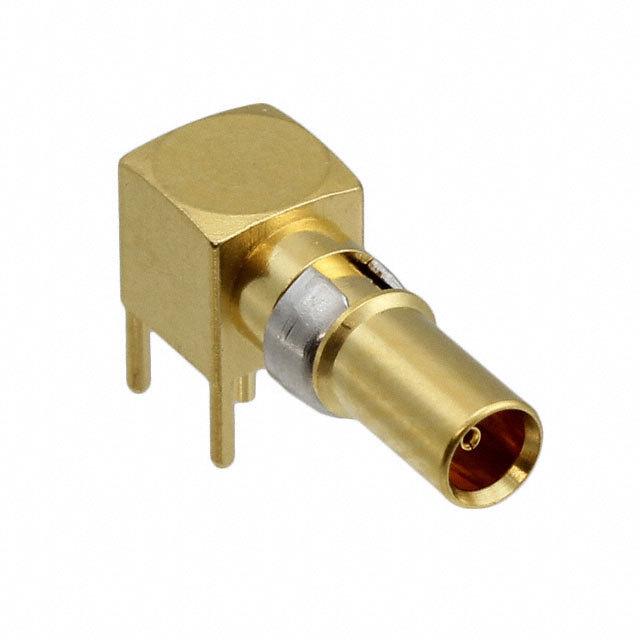

RF / Coaxial Connector, 1.0 / 2.3 Coaxial, Right Angle Bulkhead Jack, Through Hole Right Angle
Powell:
Special Coaxial Contacts
Electro Sonic:
V23601A1227E 1=LP-KUPPLER
