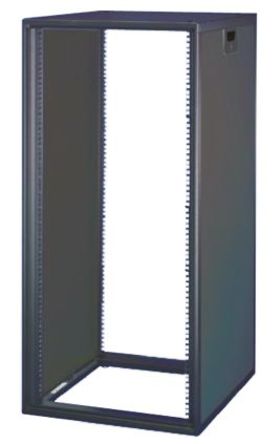

NOVASTAR Cabinet The NOVASTAR cabinet is a slim-line and mobile enclosure designed for 19in. rack mount equipment, which combines the functionality required in the laboratory with the stylish design wanted in the studio. Built around a strong yet lightweight die-cast aluminium frame the cabinet offers a static load-carrying capacity of 200kg 400kg for the heavy duty version. It can be used without a door to allow unhindered access to the front of the mounted 19in. equipment or with a door which features an opening angle of 180 degrees. Quick release side panels offer further access and are recessed flush with the front and rear uprights to keep the overall cabinet width down to a space saving 553mm. All uprights front and rear with 19in. cut-outs Flush cladding parts Ingress protection class IP20 3 cabinet depths 500, 600, 800 mm, cabinet width 553 mm Static load-carrying capacity of 200 kg 9 U to 25 U and 400 kg 34 U Colour combination: side panels RAL 70
**NOVASTAR Cabinet**
The NOVASTAR cabinet is a slim-line and mobile enclosure designed for 19in. rack mount equipment, which combines the functionality required in the laboratory with the stylish design wanted in the studio. Built around a strong yet lightweight die-cast aluminum frame the cabinet offers a static load-carrying capacity of 200kg 400kg for the heavy duty version. It can be used without a door to allow unhindered access to the front of the mounted 19in. equipment or with a door which features an opening angle of 180 degrees. Quick release side panels offer further access and are recessed flush with the front and rear uprights to keep the overall cabinet width down to a space saving 553mm.
