1445997-1

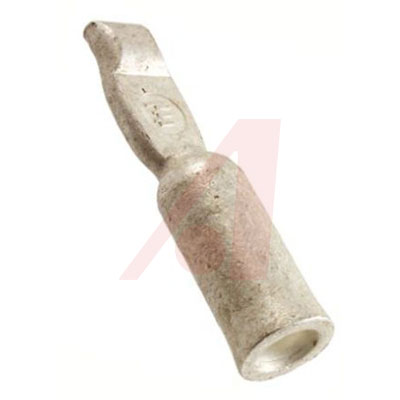

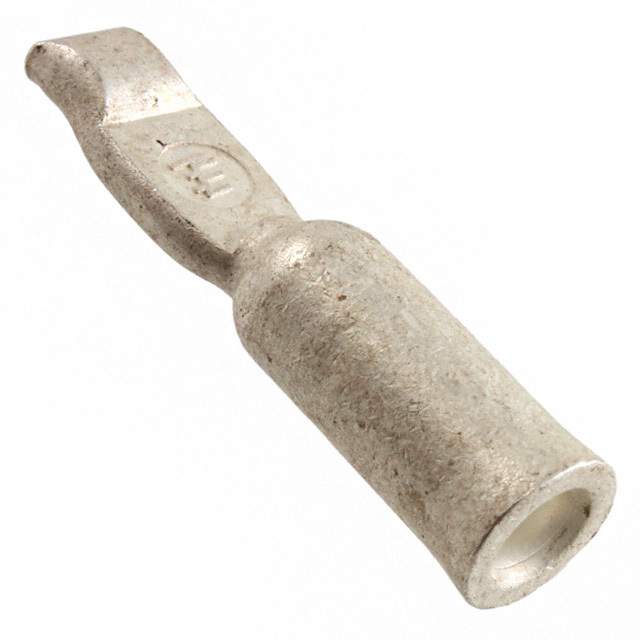

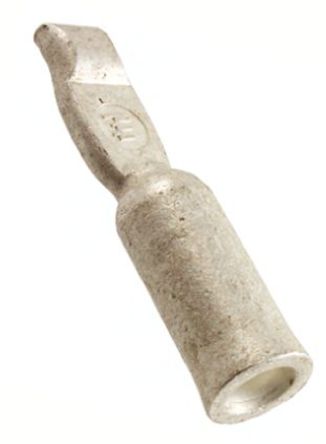

TE Connectivity AMP 功率系列 120 触点 AMP 功率系列 120 触点，适用于 AMP 功率系列 120 外壳。 这些 AMP 功率系列 120 冷头压接触点镀银，电压额定值为 600V 交流或 600V 直流，额定电流为 120A。 库存号 782-9035 TE Connectivity AMP 功率

AMP® Power Lock Connectors have hermaphroditic housing and contact designs. The hermaphroditic housings are also modular in design and permit the clustering of connectors of the same series. Housings are made of impact resistant thermoplastic with stainless steel locking springs for contact stability. Terminals are available in strip and loose piece form with a material choice of silver, or gold plated copper. Contacts for Series I Connectors accept a wire size range of 18-12 AWG and contacts for Series II Connectors accept a wire size range of 10-6 AWG. Both insert easily into housings where integral locking springs provide positive retention.AMP® Power Lock Connectors can be adapted to most high current applications and may be used as free-hanging, surface mounted and thru-panel mounted connectors, or when posted contacts are used, they can be used on printed circuits.

* Single-Pole and Two-Pole Quick Connect/Disconnect Connectors

* Voltage Rating: 600 VAC/VDC

* Color-Coded Housings, UL94V-0

* Hermaphroditic Housings Reduce Inventory
