103681-4

103681-4图片1

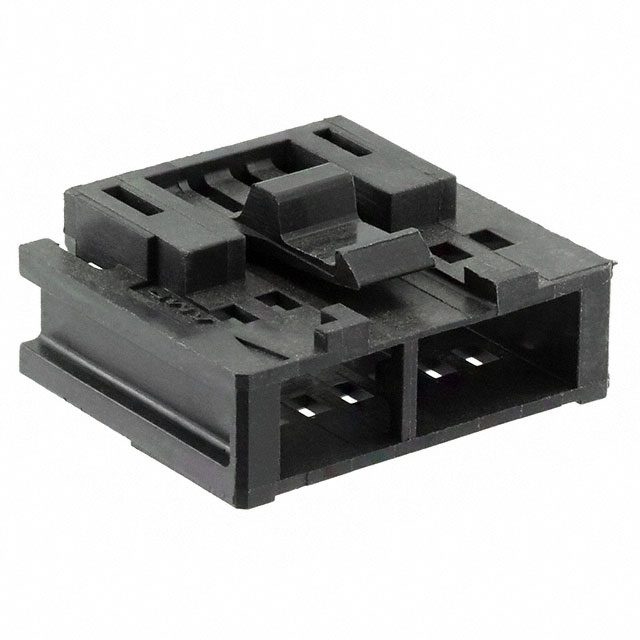

103681-4图片2
103681-4图片3
103681-4图片4
103681-4图片5
103681-4图片6
103681-4图片7
103681-4概述

Conn Housing RCP 14POS 2.54mm Crimp ST Cable Mount

Connector Shroud For AMPMODU MTE Series


得捷:
CONN SHROUD 14POS DAUL LATCHED


艾睿:
TE Connectivity&s;s 103681-4 discrete wire housing provides a durable connection for discrete wires. This RCP connector has 14 RCP contacts. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. Its wire is 22-30 AWG. This rectangle connector has an operating temperature of -65 to 105 °C. 103681-4 is housed in black thermoplastic. This product is 22.47 mm long, 11.76 mm tall and 18.66 mm deep.


安富利:
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount


Powell:
.100 AMPMODU Headers, Housings & Contacts


103681-4中文资料参数规格
技术参数

绝缘电阻 5.00 GΩ

排数 2

易燃性等级 UL 94 V-0

针脚数 14

触点额定电流 3.00 A

物理参数

外壳颜色 Black

颜色 Black

工作温度 -65℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买103681-4
型号: 103681-4
描述:Conn Housing RCP 14POS 2.54mm Crimp ST Cable Mount
