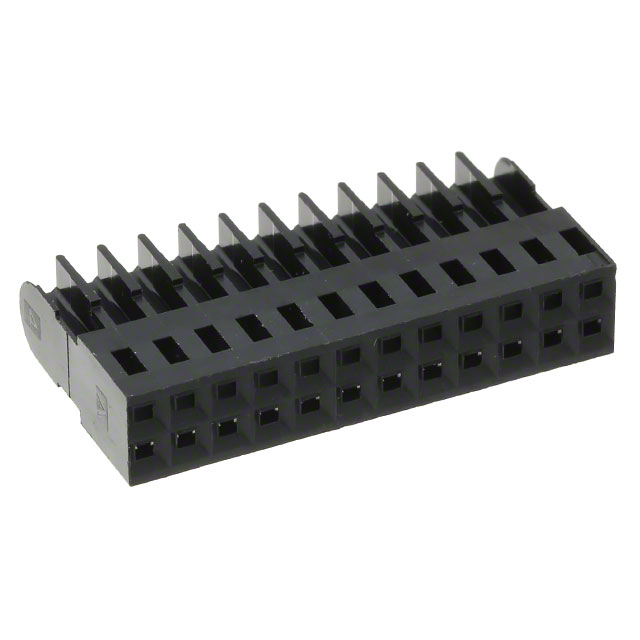

集管和线壳 24P RCPT .100 IDC DR
24 矩形 - 外壳 插座 黑色 0.100"(2.54mm)
得捷:
CONN RCPT HSG 24POS 2.54MM
贸泽:
集管和线壳 24P RCPT .100 IDC DR
艾睿:
Thanks to TE Connectivity&s;s 1-102394-0 discrete wire housing, you can now easily connect discrete wires to your printed circuit board. This RCP connector has 24 RCP contacts. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. This component will be shipped in tray format. This product is 30.48 mm long, 6.1 mm tall and 15.24 mm deep. Its wire is 20-30 AWG. 1-102394-0 is housed in black thermoplastic. This rectangle connector has an operating temperature of -65 to 105 °C.
安富利:
Conn Housing RCP 24 POS 2.54mm IDT ST Cable Mount
Verical:
Conn Housing F 24 POS 2.54mm IDT ST Cable Mount Black Tray
MASTER:
HSG, DBL ROW, 2.54[.100]x2.54[.100] CL MT, AMPMODU
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
24 AMP MODU MT HSG DR .100CL
Electro Sonic:
24 AMP MODU MT HSG DR .100CL
触点数 24
触点电镀 Gold
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 24
触点额定电流 3.00 A
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
引脚间距 2.54 mm
长度 30.5 mm
宽度 6.10 mm
高度 6.1 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
