1430433C

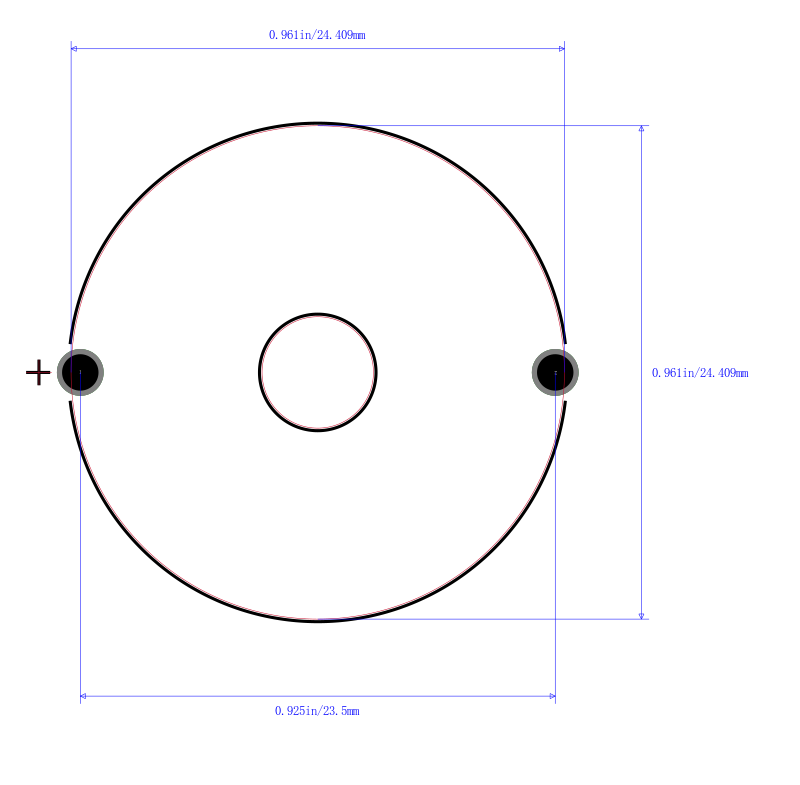

Murata 1400 系列高电流径向电感器设计用于电力线应用，例如开关调节器、滤波器和抑制电路采用高饱和度通量密度材料 构造，允许在高电流应用场合中使用 适合于印刷电路板或通过中心固定洞使用非磁性扣件的底盘安装 使用易于剥离的预镀锡搪瓷铜引线进行端接 导线长度 10mm 工作温度：-40 → +85°C 电感容差：±10% 选择指南和尺寸 --- 库存号 | 电感 | 额定电流 | 直径 | 高度 | 引线直径 | 节距 228-416 | 100 uH | 5.4 A | 24.4 mm | 14.0 mm | 1.02 mm | 23.6 mm 228-422 | 220 uH | 3.5 A | 24.4 mm | 14.0 mm | 0.85 mm | 23.5 mm 228-438 | 330 uH | 2.8 A | 24.4 mm | 14.0 mm | 0.76 mm | 23.4 mm 228-444 | 470 uH | 2.3 A | 24.4 mm | 14.0 mm | 0.67 mm | 23.3 mm 228-551 | 1.0 mH | 1.6 A | 24.4 mm | 14.0 mm | 0.60 mm | 23.2 mm 228-567 | 3.3 mH | 0.7 A | 24.4 mm | 14.0 mm | 0.60 mm | 23.0 mm 228-573 | 10 mH | 0.4 A | 24.4 mm | 14.0 mm | 0.34 mm | 22.9 mm 228-589 | 100 uH | 7.8 A | 29.8 mm | 21.8 mm | 1.30 mm | 29.3 mm 228-595 | 220 uH | 5.5 A | 29.8 mm | 21.8 mm | 1.14 mm | 29.1 mm 228-602 | 330 uH | 4.5 A | 29.8 mm | 21.8 mm | 1.02 mm | 29.0 mm 228-618 | 470 uH | 4.0 A | 29.8 mm | 21.8 mm | 0.97 mm | 29.0 mm ### Murata 引线电感器（扼流圈）

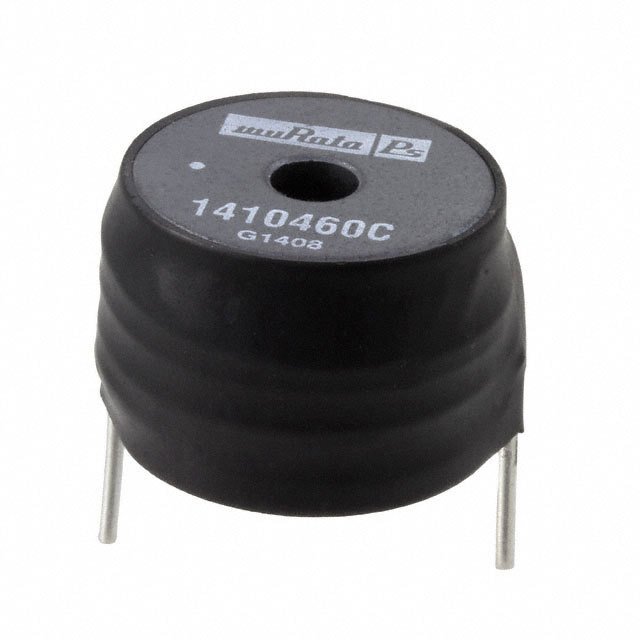

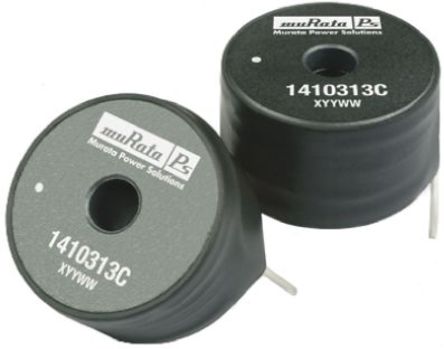

Murata 1400 系列高电流径向器

设计用于电力线应用，例如开关调节器、滤波器和抑制电路采用高饱和度通量密度材料

构造，允许在高电流应用场合中使用

适合于印刷电路板或通过中心固定洞使用非磁性扣件的底盘安装

使用易于剥离的预镀锡搪瓷铜引线进行端接

导线长度 10mm

工作温度：-40 → +85°C

电感容差：±10%

### Murata 引线电感器（扼流圈）

欧时:
Murata 1400 系列 300 μH ±10% 1430433C 线轴电感器, 2.2MHz最大自谐振频率, 37最小质量系数, 3.5A Idc

得捷:
FIXED IND 300UH 3.3A 100MOHM TH

贸泽:
Fixed Inductors 300uH3.3A 22X18

艾睿:
This general purpose 1430433C leaded inductor from Murata Power Solutions is convenient and easily removable. This part has a pitch of 23.5 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.2MTyp Hz. It has an inductance of 300u H. This device utilizes bobbin core technology. This leaded inductor has a maximum DC current of 3.3 A with a maximum resistance of 100m Ohm. This product is 27.7 mm long, 20 mm tall and 25.9 mm deep. It has a tolerance of 10%.

安富利:
Ind Bobbin Core 300uH 10% 1KHz 37Q-Factor 3.5A RDL

Verical:
Inductor General Purpose Bobbin Core 300uH 10% 1KHz 37Q-Factor 3.3A 100mOhm DCR RDL Carton
