针座

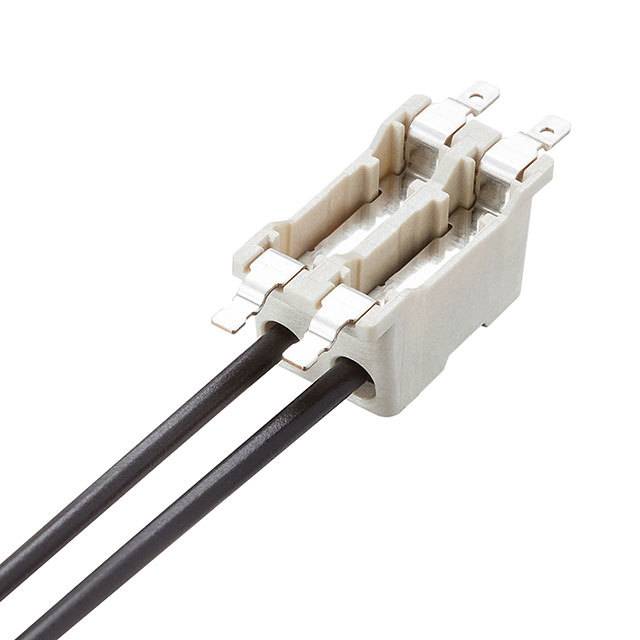

SSL Connector 2 Position Receptacle, Poke-In Wire Board to Cable/Wire 0.157" 4.00mm Solder
立创商城:
针座
得捷:
BOTTOM ENTRY LITE-TRAP CONN. 2CK
艾睿:
Conn Wire to Board F 2 POS 4mm Solder ST Bottom Entry SMD Lite-Trap™ T/R
TME:
Connector: plug-in; Lite-Trap; 4mm; ways:2; 24÷18AWG; tinned; 3A
Verical:
Conn Wire to Board F 2 POS 4mm Solder ST Bottom Entry SMD Lite-Trap™ T/R
触点数 2
极性 Female
线规 18AWG ~ 24AWG
触点电镀 Tin
绝缘电阻 1000 MΩ
排数 1
针脚数 2
拔插次数 25
额定电流Max 3A/触头
工作温度Max 130 ℃
工作温度Min -60 ℃
额定电压 320 V
接触电阻Max 10 mΩ
安装方式 Surface Mount
封装 SMD
高度 7.35 mm
封装 SMD
外壳颜色 Natural
触点材质 Copper Alloy
工作温度 -60℃ ~ 130℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
