间距7.62mm 8位 插座 20A 630V 直插
8 针位端子块 接头，公引脚，带罩（4 面） 0.300"（7.62mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 8POS VERT 7.62MM
贸泽:
Fixed Terminal Blocks PCV 4/ 8-G-7 62
艾睿:

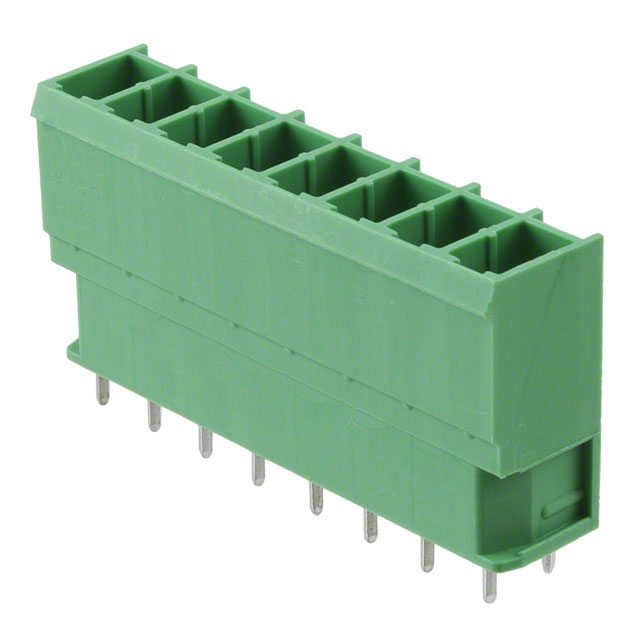

Mounting this shrouded 1804742 header connector from Phoenix Contact to your printed circuit board can help you support multiple physical configuration options. This HDR connector has 8 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 400 V. It has a straight body orientation. Its pitch is 7.62 mm. This is a 1-row connector. This device has a maximum current rating of 20 A. It uses the solder termination method. 1804742 is housed in polybutylene terephthalate. This product is 60.94 mm long, 29 mm tall and 14.3 mm deep.
Verical:
Conn Shrouded Header HDR 8 POS 7.62mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - number of positions: 8 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m
Online Components:
Conn Shrouded Header HDR 8 POS 7.62mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - ...
