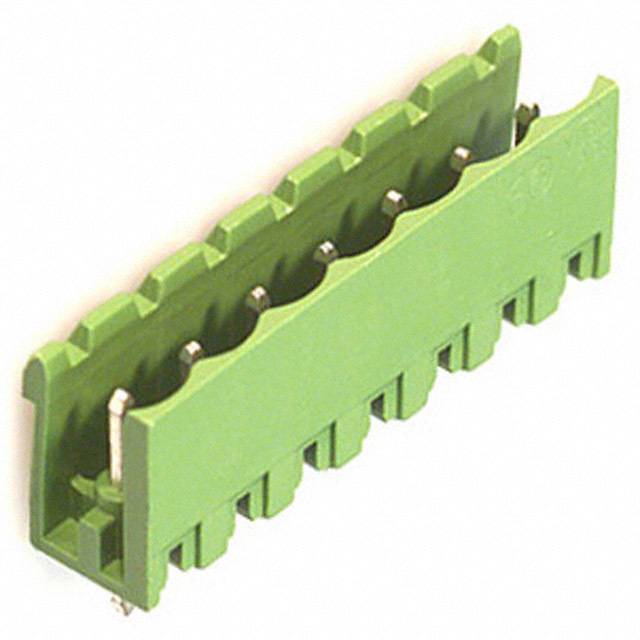

1753534

间距5mm 7位 插座 12A 320V 直插 无封边

7 针位端子块 接头，公引脚，带罩（2 面） 0.197"（5.00mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 7POS VERT 5MM

欧时:
PCB vertical header, 5mm pitch, 7 way

贸泽:
可插拔接线端子 7 Pos 5mm pitch Through Hole Header

艾睿:
Thanks to Phoenix Contact&s;s shrouded 1753534 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 7 contacts that are plated with tin. Its pitch is 5 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 1753534 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 35 mm long, 12 mm tall and 8.6 mm deep.

Allied Electronics:
MSTBV Series, 5mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 12A

Verical:
Conn Shrouded Header 2 Sides HDR 7 POS 5mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 7 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9

Online Components:
Conn Shrouded Header HDR 7 POS 5mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
