间距3.81mm 4位 插座 带法兰 8A 160V 直插
Conn Wire to Board HDR 4 POS 3.81mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 4POS VERT 3.81MM
立创商城:
板端/插座-闭口 3.81mm 排数:1 每排P数:4 直针 螺丝固定
欧时:
Printed-circuit board connector
贸泽:
可插拔接线端子 4 Pos 3.81mm pitch Through Hole Header
艾睿:

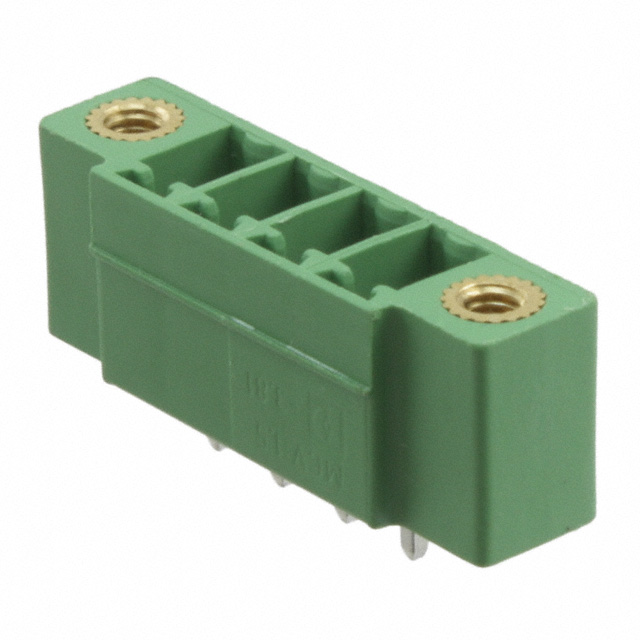

Thanks to Phoenix Contact&s;s wire to board 1830619 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 4 contacts that are plated with tin. Its pitch is 3.81 mm. It has a straight body orientation. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. 1830619 is housed in green polybutylene terephthalate. This product is 25.63 mm long, 9.2 mm tall and 7.25 mm deep. It uses the solder termination method.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 4Pole; 3.81mmPitch; COMBICON
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 4 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
