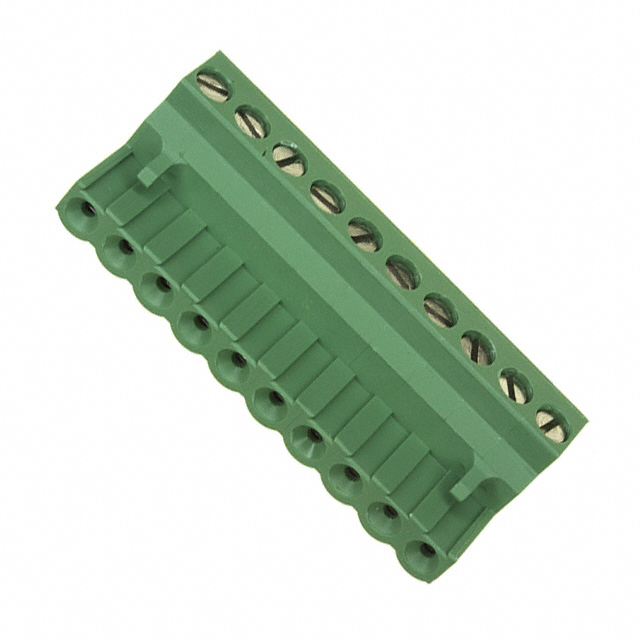

1-796640-0

Buchanan- 10 位置 5.00 mm 30-12 AWG 直角 接线端子-绿色

10 POS 5.0 MM R/A PLUG,TRM BLK

Product Highlights

Connector

Connector Type = Plug

Not Shrouded

Housing Color = Green

Side Stackable

得捷:
TERM BLOCK PLUG 10POS STR 5MM

e络盟:
TE CONNECTIVITY / BUCHANAN  1-796640-0  插拔式接线端子, 10 路, 300 V, 15 A, 5 mm, 30 AWG, 12 AWG

艾睿:
This eurostyle block 1-796640-0 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. This F connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. Its pitch is 5 mm. It has a right angle body orientation. It has a female type gender. 1-796640-0 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. Its wire is 12-30 AWG. It uses the screw termination method. This product is 50 mm long, 15.5 mm tall and 18.4 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C.

安富利:
Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 15A/Contact

Chip1Stop:
Conn Eurostyle Block F 10 POS 5mm Screw RA Cable Mount 15A/Contact

Verical:
Conn Eurostyle Block F 10 POS 5mm Screw RA Cable Mount 15A/Contact Box

MASTER:
TERMINAL BLOCK, PLUG, STACKING 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
10 POS 5.0 MM R/A PLUG,TRM BLK

Electro Sonic:
10 POS 5.0 MM R/A PLUG,TRM BLK
