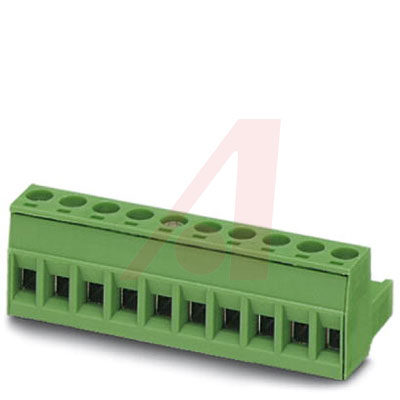

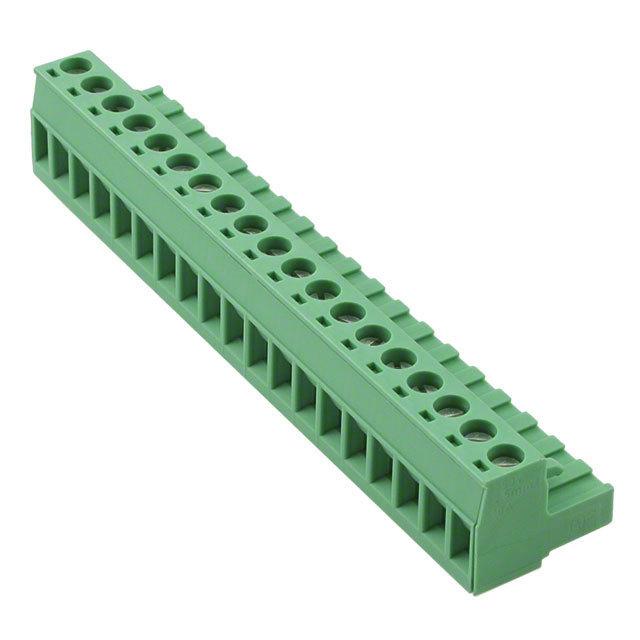

Conn Terminal Block F 19POS 5.08mm Screw RA Cable Mount 12A
19 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 19POS STR 5.08MM
艾睿:
This 1757187 PCB terminal block manufactured from Phoenix Contact will connect wires together. This F connector has 19 contacts that are plated with tin. This is a 1-row connector. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This device has a maximum current rating of 12 A. 1757187 is housed in polyamide. Its wire is 12-24 AWG. This product is 96.52 mm long, 15 mm tall and 18.2 mm deep. It uses the screw termination method.
Allied Electronics:
COMBICON MSTB Series 5.08mm Pitch Straight Pluggable Trm Blk, Plug w/ Screw Term
Verical:
Conn Terminal Block F 19 POS 5.08mm Screw RA Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 19 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 19 POS 5.08mm Screw RA Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
