1792469

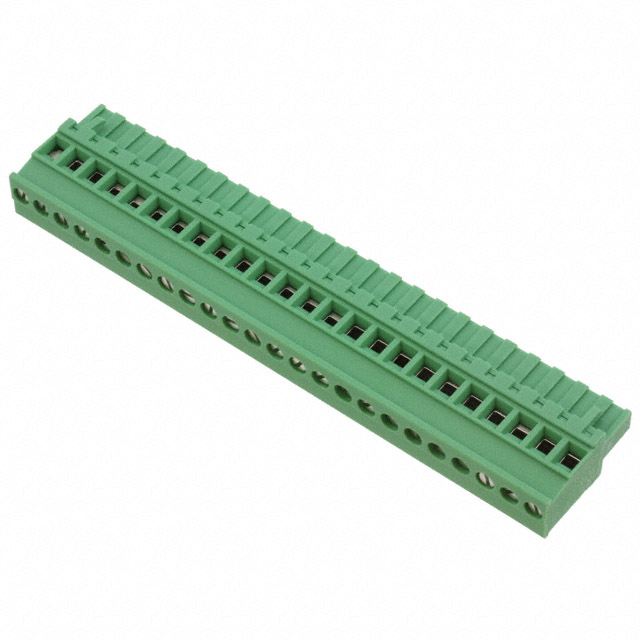

Phoenix Contact MVSTBR 系列 24路 5.08mm节距 印刷电路板接线端子块 1792469, 螺钉端接, 连接器

Conn Terminal Block F 24 POS 5.08mm Screw ST Cable Mount 12A

得捷:
TERM BLOCK PLUG 24POS 5.08MM

欧时:
Phoenix Contact MVSTBR 系列 24路 5.08mm节距 印刷电路板接线端子块 1792469, 螺钉端接, 连接器

贸泽:
可插拔接线端子 24 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Ideal for testing purposes this 1792469 PCB terminal block manufactured from Phoenix Contact will exceed your needs. This F connector has 24 contacts that are plated with tin. It has a straight body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a female type gender. 1792469 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 121.92 mm long, 26 mm tall and 12.6 mm deep. Its wire is 12-24 AWG.

Verical:
Conn Terminal Block F 24 POS 5.08mm Screw ST Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 24 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 24 POS 5.08mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
