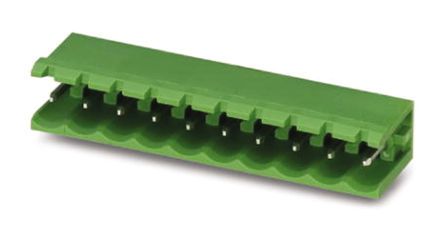

1757624

Phoenix Contact PCB 接线端子块 COMBICON MSTBA 系列 18路 5mm节距 1757624, 焊接端接, 12A

18 针位端子块 接头，公引脚，带罩（4 面） 0.197"（5.00mm） 90°，直角 - 通孔

得捷:
TERM BLOCK HDR 18POS 90DEG 5MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBA 系列 18路 5mm节距 1757624, 焊接端接, 12A

贸泽:
可插拔接线端子 18 Pos 5mm pitch Through Hole Header

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 1757624 header connector from Phoenix Contact. This HDR connector has 18 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 320 V. This is a 1-row connector. Its pitch is 5 mm. It has a right angle body orientation. This device has a maximum current rating of 12 A. 1757624 is housed in green polybutylene terephthalate. This product is 102 mm long, 8.6 mm tall and 12 mm deep. It uses the solder termination method.

Verical:
Conn Shrouded Header 4 Sides HDR 18 POS 5mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 18 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5

Online Components:
Conn Shrouded Header HDR 18 POS 5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
