1827790

间距3.81 11位 插头 带锁紧螺丝 8A 160V 螺钉式 配线28-16AWG0.14-1.5mm²

Conn Terminal Block F 11 POS 3.81mm Screw ST Panel Mount 8A

得捷:
TERM BLOCK PLUG 11POS STR 3.81MM

贸泽:
Pluggable Terminal Blocks 11 Pos 3.81mm pitch Plug 28-16 AWG Screw

艾睿:

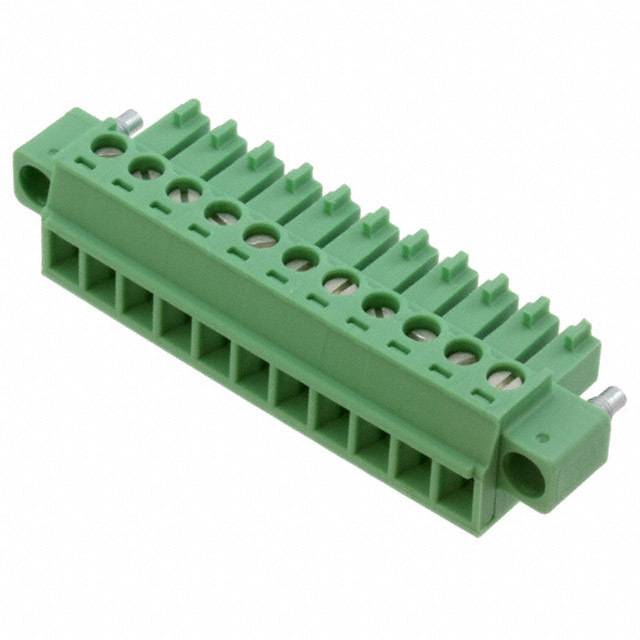

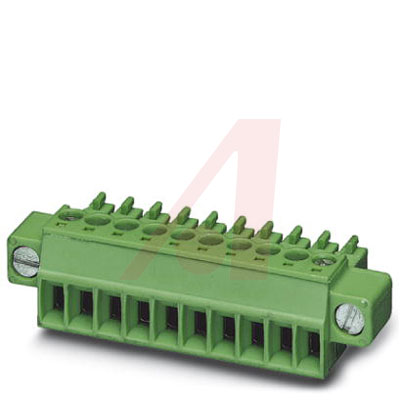

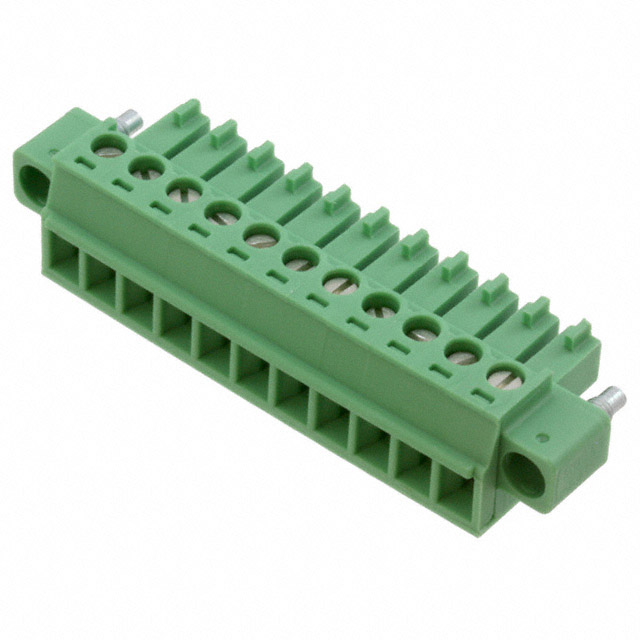

Connect test equipment together with other components by using this 1827790 PCB terminal block from Phoenix Contact. This F connector has 11 contacts that are plated with tin. It has a maximum voltage rating of 160 V. It has a female type gender. Its pitch is 3.81 mm. It has a straight body orientation. This is a 1-row connector. 1827790 is housed in polyamide. This device has a maximum current rating of 8 A. It uses the screw termination method. Its wire is 16-28 AWG. This product is 52.3 mm long, 11.1 mm tall and 16.1 mm deep.

Allied Electronics:
MINI COMBICON MC SER 3.81mm Pitch Straight Pluggable Trm Blk, Plug w/ Screw Term

Verical:
Conn Terminal Block F 11 POS 3.81mm Screw ST Panel Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 11 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 11 POS 3.81mm Screw ST Panel Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
