1777316

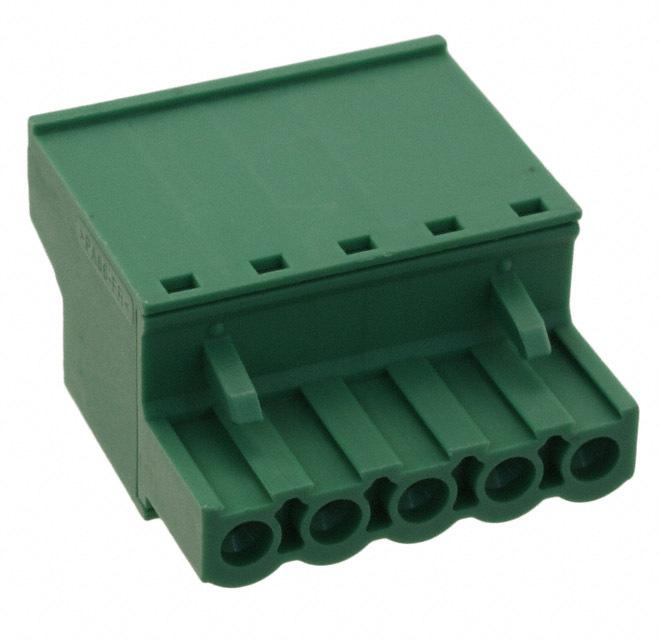

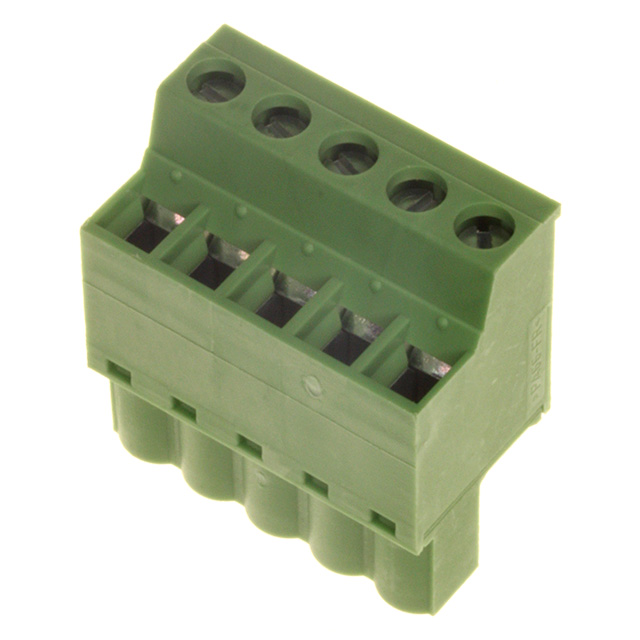

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 5 路 母 绿色 插头 1777316, 螺钉端接

Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 12A

得捷:
TERM BLOCK PLUG 5POS STR 5.08MM

欧时:
Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 5 路 母 绿色 插头 1777316, 螺钉端接

艾睿:
Connect test equipment together with other components by using this 1777316 PCB terminal block from Phoenix Contact. This F connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a straight body orientation. It has a female type gender. This is a 1-row connector. Its pitch is 5.08 mm. This device has a maximum current rating of 12 A. 1777316 is housed in polyamide. This product is 25.04 mm long, 15 mm tall and 27.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5.08 mm - connection method: Front screw connection - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
