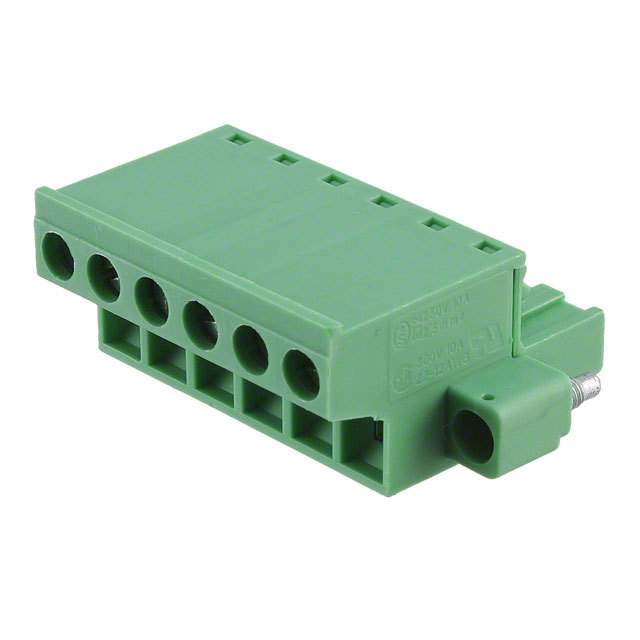

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 6 路 母 绿色 插头 1777840, 螺钉端接
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 12A
欧时:
FRONT-MSTB 2,5/ 6-STF-5,08
得捷:
TERM BLOCK PLUG 6POS STR 5.08MM
艾睿:
This 1777840 PCB terminal block developed by Phoenix Contact will mend different gage wires together. This F connector has 6 contacts that are plated with tin. This is a 1-row connector. It has a straight body orientation. It has a female type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. 1777840 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 40.28 mm long, 15 mm tall and 27.5 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.
Online Components:
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
